Bosch LBD0606/10 – 6w Metal Ceiling Speaker

Bosch LBD0606/10 – 6w Metal Ceiling Speaker is a general purpose, 6 W, cost effective Speaker. The LBD0606/10 6W Ceiling Loudspeaker is a general purpose, 6 W, cost effective Speaker.
The loudspeaker can be used for reproducing music as well as speech

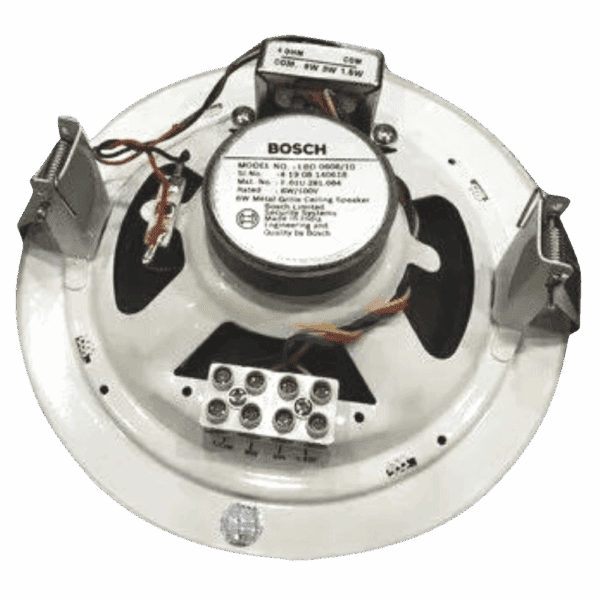

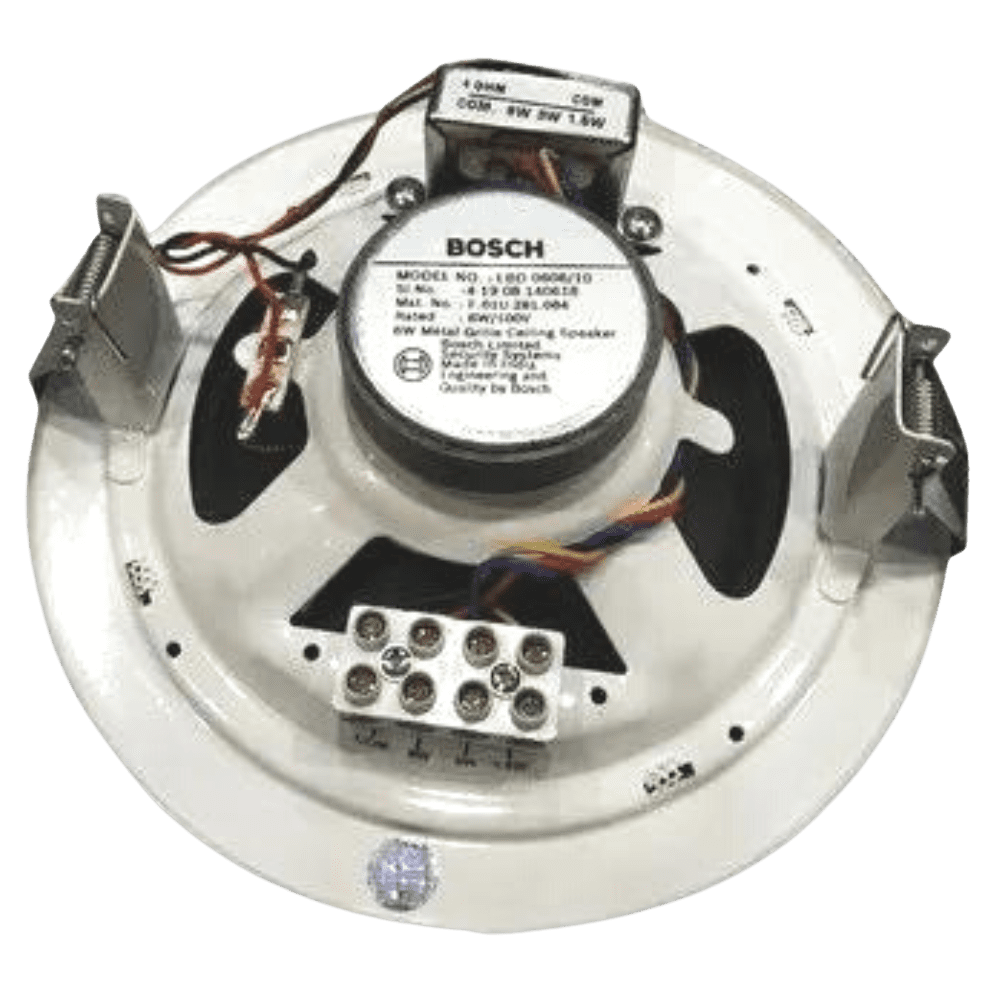

The speaker assembly consists of a single-piece, dual cone 6W Metal Ceiling Loudspeaker and frame, with a 100 V, matching transformer mounted on the back.
The wide frequency range means better speech and music reproduction.
Ceiling speaker are supplied with a 100 V matching transformer with taps on the primary winding for full power, half-power, quarter-power and eighth-power radiation.
The 6W Metal Ceiling Loudspeaker has integral spring clamps on the rear which can be used to easily fix the loudspeaker into the false ceiling.

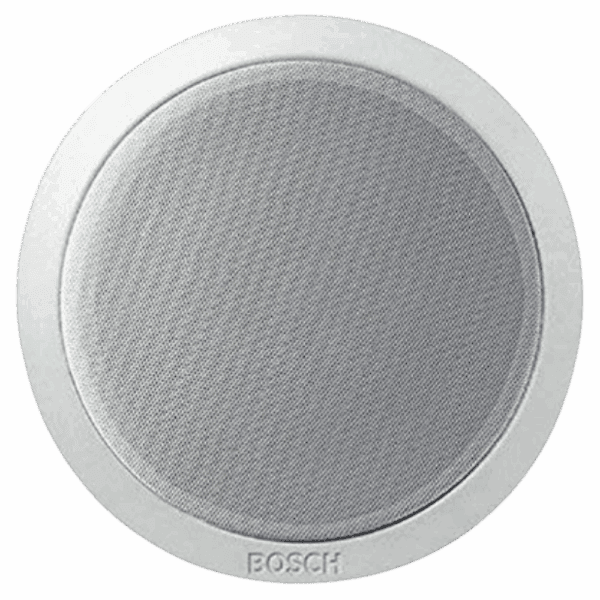

Bosch LBD0606/10 – 6w Metal Ceiling Speaker is circular metal grille is an integrated part of the front.
Ceiling speaker appearance and neutral white color has been selected to be unobtrusive in virtually all interiors.
The metal grille can be painted to any color to match the background
Suitable for speech and music reproduction.
Flush-mounting in ceiling cavity.
Easy to install.
Simple power setting.
Unobtrusive in virtually all interiors

Max. power9WRated power 6 / 3 / 1.5 W Sound pressure level atrated power/1W (at 1kHz, 1m)94 dB / 86 dB (SPL)Sound pressure at 6 W / 1 W (4 kHz, 1 m)106 dB / 98 dB (SPL)Effective frequency range0dB)80 Hz to 18 kHz Opening angle at (1kHz,4kHz, -6dB) in degrees 175/ 55 Rated voltage 100V Rated impedance in ohms 1667 connection Flying leadsDiameter 199 mm (7.8 in)Maximum depth 70.5 mm (2.8 in)Mounting cut-out 165 + 5 mm (6.5 + 0.20 in)Speaker diameter 152.4 mm (6 in)
