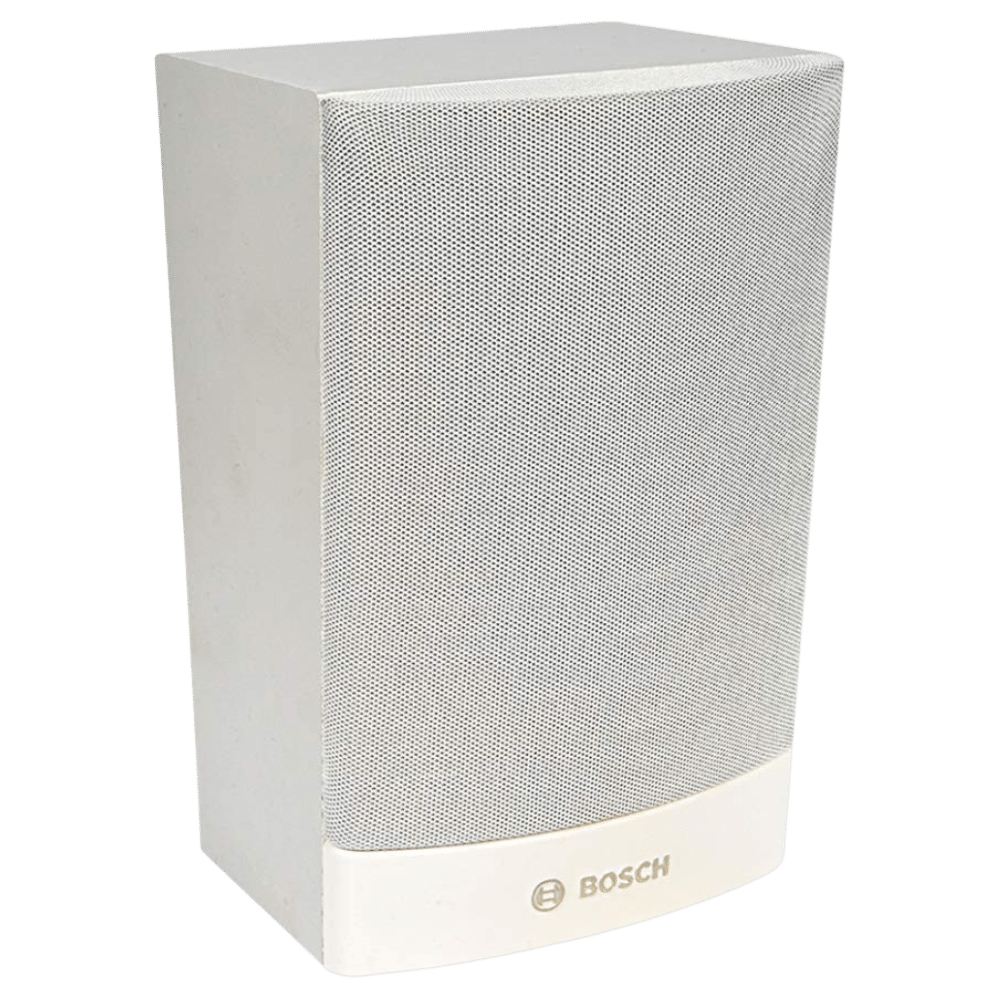

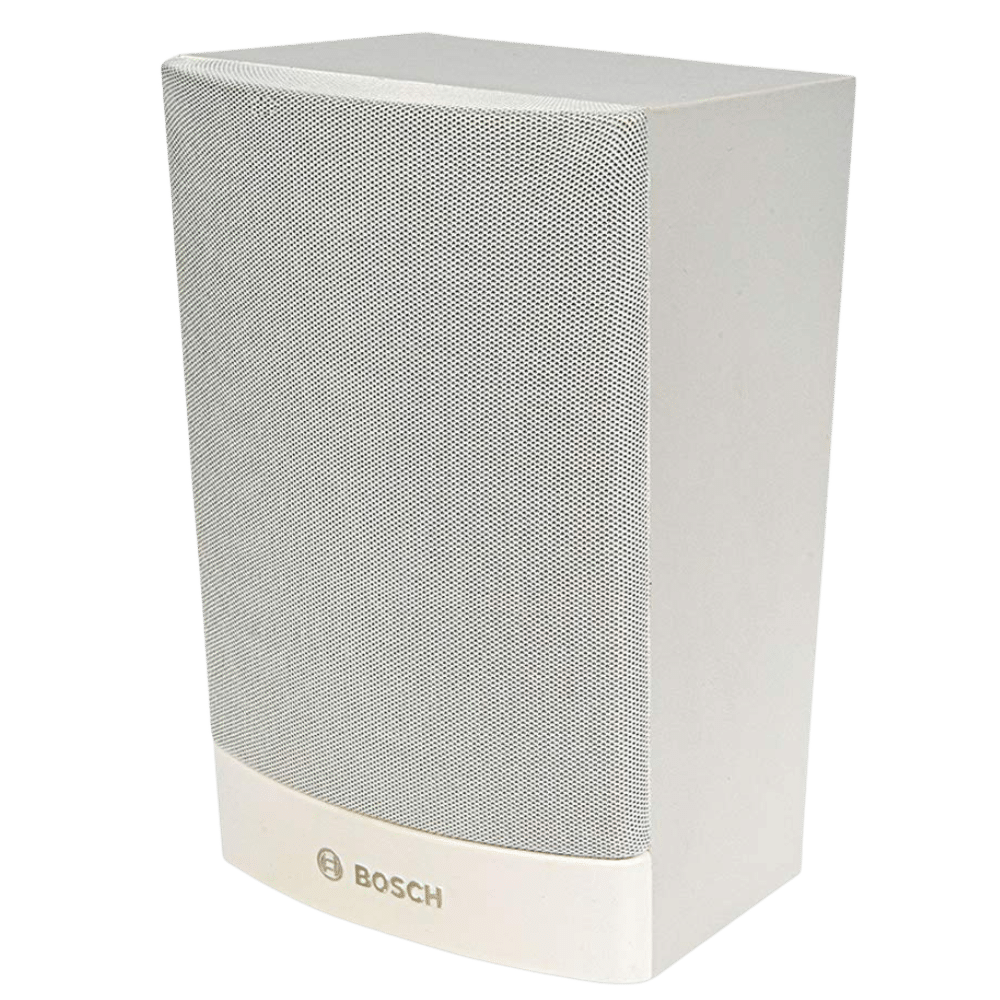

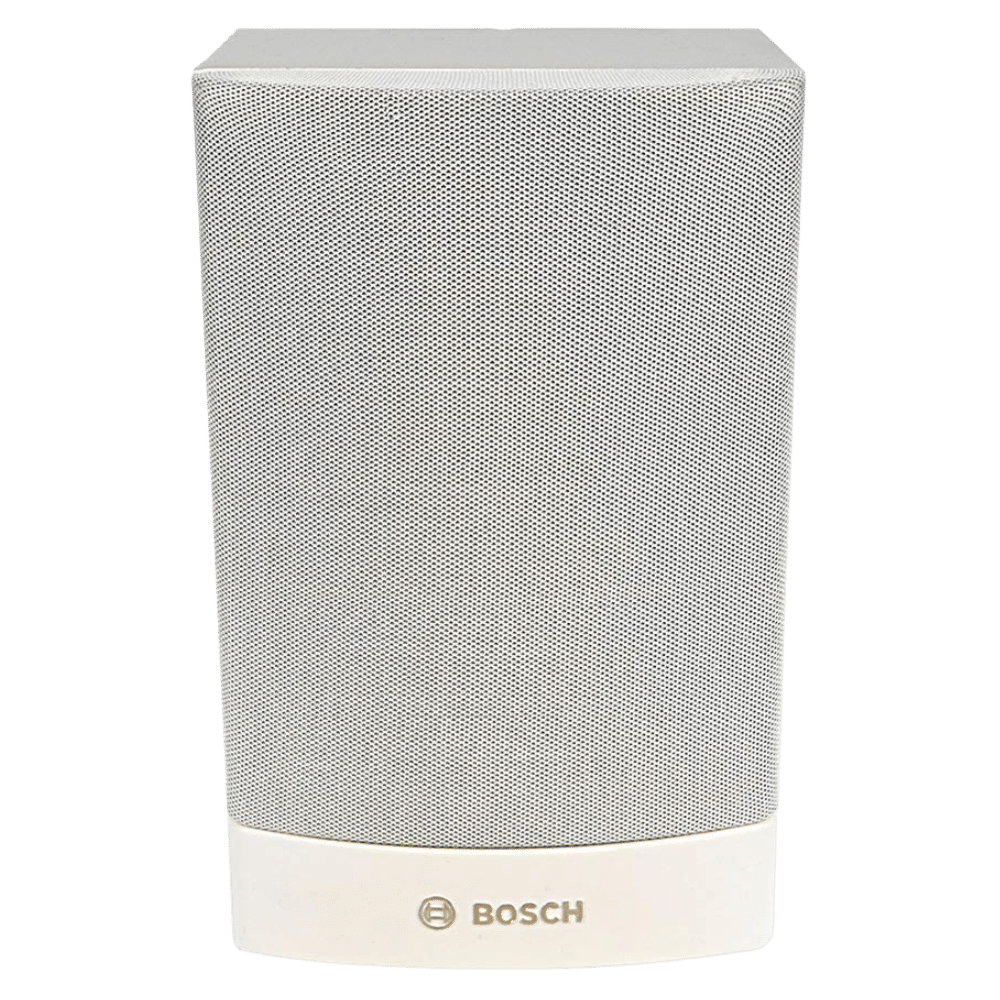

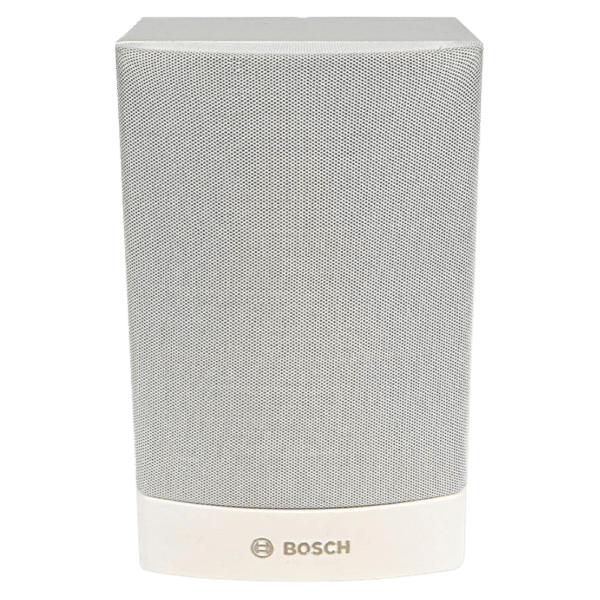

Bosch LBD3902-L-6W Cabinet Loudspeaker is a 6 W, general-purpose, cost effective for indoor use. Keyholes at the rear are provided for quick and easy wall mounting.
The angled front baffle results in a better sound in the listening area. The cabinet is available in black or white.
The robust, solid MDF (Medium Density Fiber board)enclosures are covered with a durable, easy-to-clean vinyl in white or black. The ABS fronts are covered with fine woven cloth in matching color.
Bosch LBD3902-L-6W Cabinet Loudspeaker has been tested for operation at rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards
Three keyholes in the rear panel provide easy and quick wall mounting. A convenient, easy-to-use, 4-pole push-in terminal block is on the rear panel for on-site wiring. This terminal block has provision for power tapping on the 100-volt, matching transformer in the cabinet. It allows selection of nominal full-power, halfpower or quarter power radiation (in 3 dB steps).
Bosch LBD3902-L-6W Cabinet Loudspeaker
Out of stock
Bosch LBD3902-L-6W Cabinet Loudspeaker
- Good speech intelligibility and background music reproduction.
- Available in black or white.
- MDF construction.
₹1,540.00 ₹1,850.00 Excluding Tax
Technical specifications
| Rated Power | 6W |
| Sound Pressure Level at 6W/1 W (1 kHz, 1 m) | 96dB/88dB |
| Effective frequency range | 150Hz to 15kHz |
| Opening angle horizontal(1kHz/ 4kHz,-6dB) | 165°/95° |
| Opening angle vertical(1kHz/ 4kHz,-6dB) | 160°/70° |
| Rated Impedance | 1667 Ohm |
| Rated input voltage | 100V |
| Connector | 4 Pole Push In Terminal |
| Dimensions (H x W x D) | 243x151x140/119 (in mm) |
| Weight | 1.3 kg |
| Color | LBD3902-L(White) , LBD3902-
D(Dark) |
| Operating temperature | -5 °C to +55 °C |
| Storage temperature | -40 °C to +70 °C |
