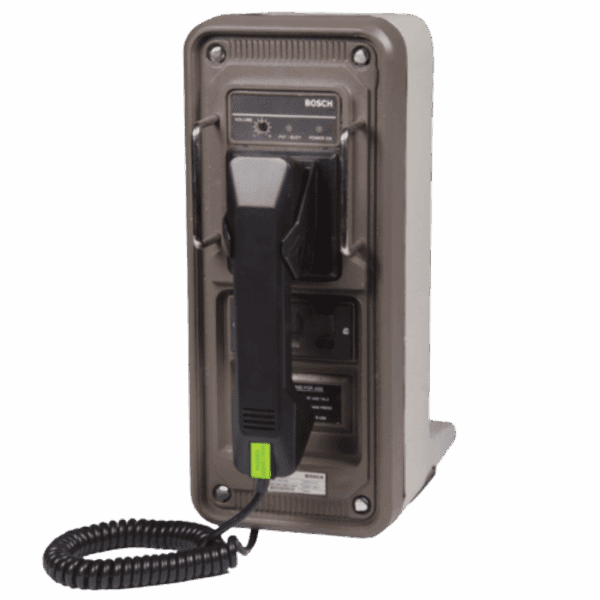

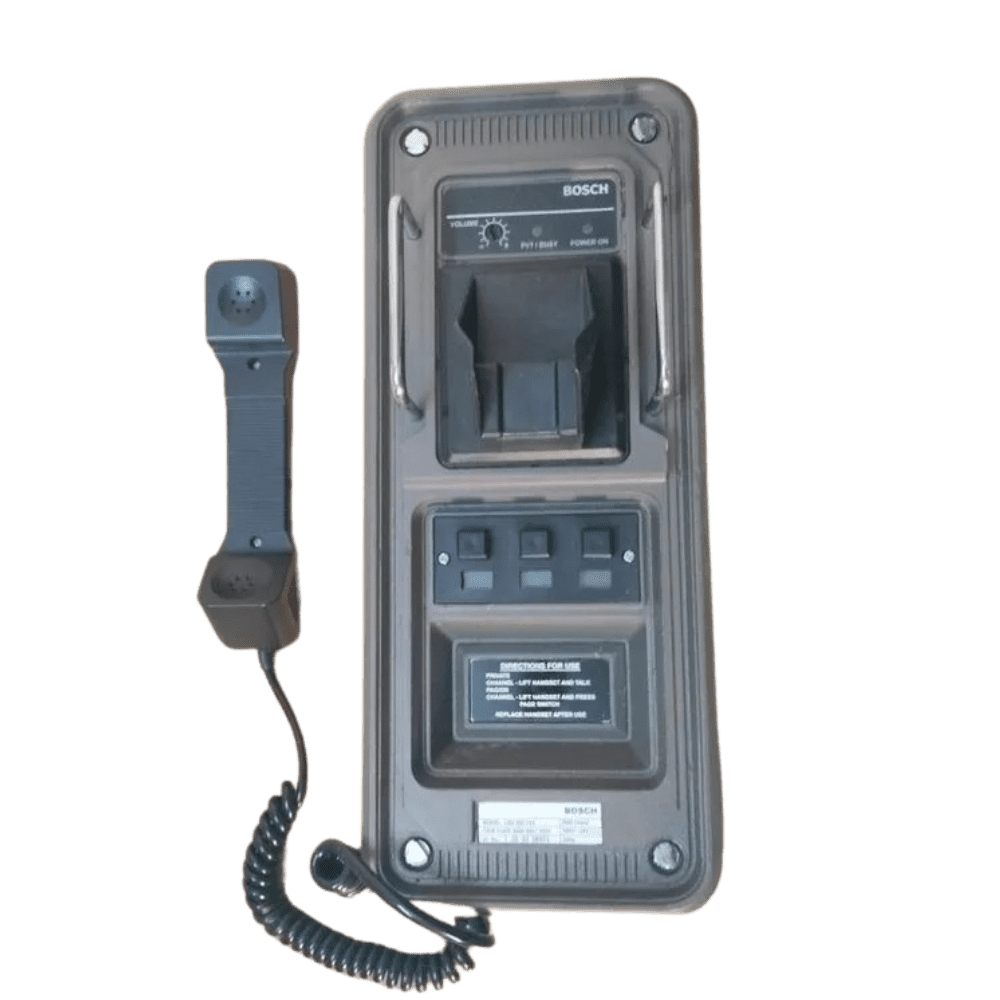

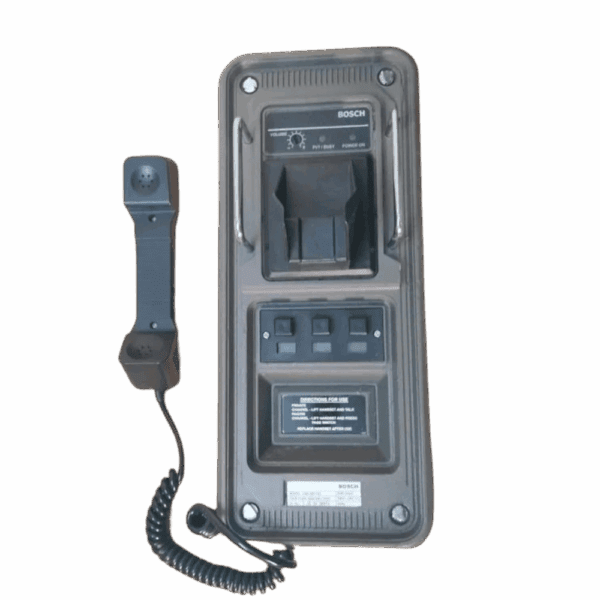

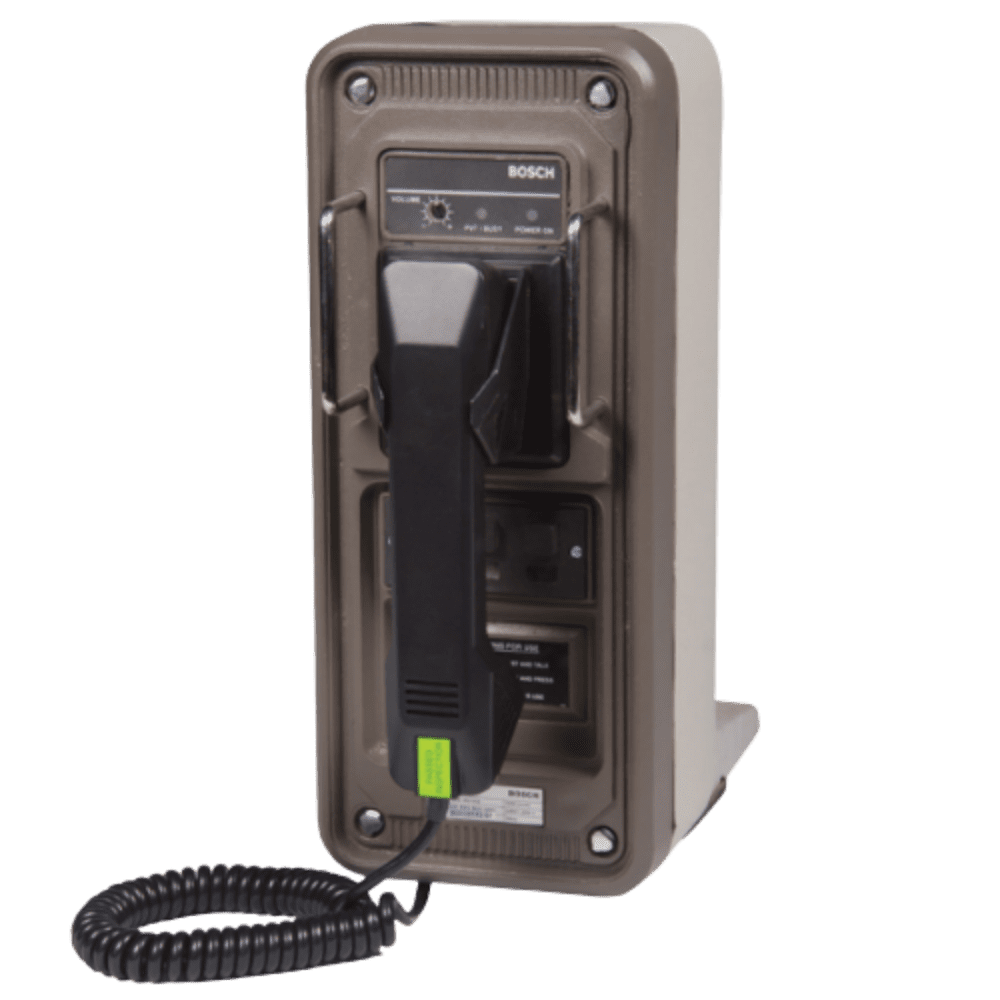

BOSCH LBD8921/02 Wall Mounting Handset station

BOSCH LBD8921/02 Wall Mounting Handset station for Industrial communication system is designed to withstand the harsh industrial environments. The handset stations are simple to operates, facilitates plant wide communication during
critical situations smoothly.

System overview

BOSCH LBD8921/02 Wall Mounting Handset station consists of rear housing and a front plug-in electronic module with a handset. The rear housing unit houses the main transformers and DC power supply with built-in thermal fuse and the housing for the front plug-in electronics module. The unit also houses terminal blocks for the party line cable, loudspeaker mute links and external DC power in terminals

Functions

Call establishment -The page function with the proper placement of the speakers attached to the call station will enable any announcement to be heard all over the plant. The party line function will facilitate the conversation of two or more people without being heard over the speakers once a call is established. The operation is simple-the user lifts the handset from the call station and press the page button, makes the announcement to a specific zone or to the entire plant, the required individual(s) lifts nearby station and the duplex communication can commence over the party line. Up to 6 individuals can participate in the conversation on on each party line.

Control and Operation

Paging announcement can be made by pressing the push button switch on the front panel. Loudspeaker can be muted using the push button switch. The functional switch can be customized as per the requirement like external call indicators, priority operations etc. Volume of the speaker can be controlled from front panel through the screw-driver adjustable volume controller
