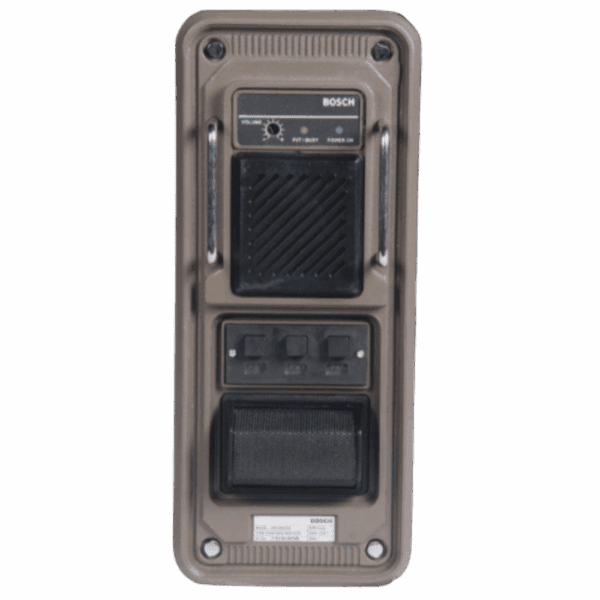

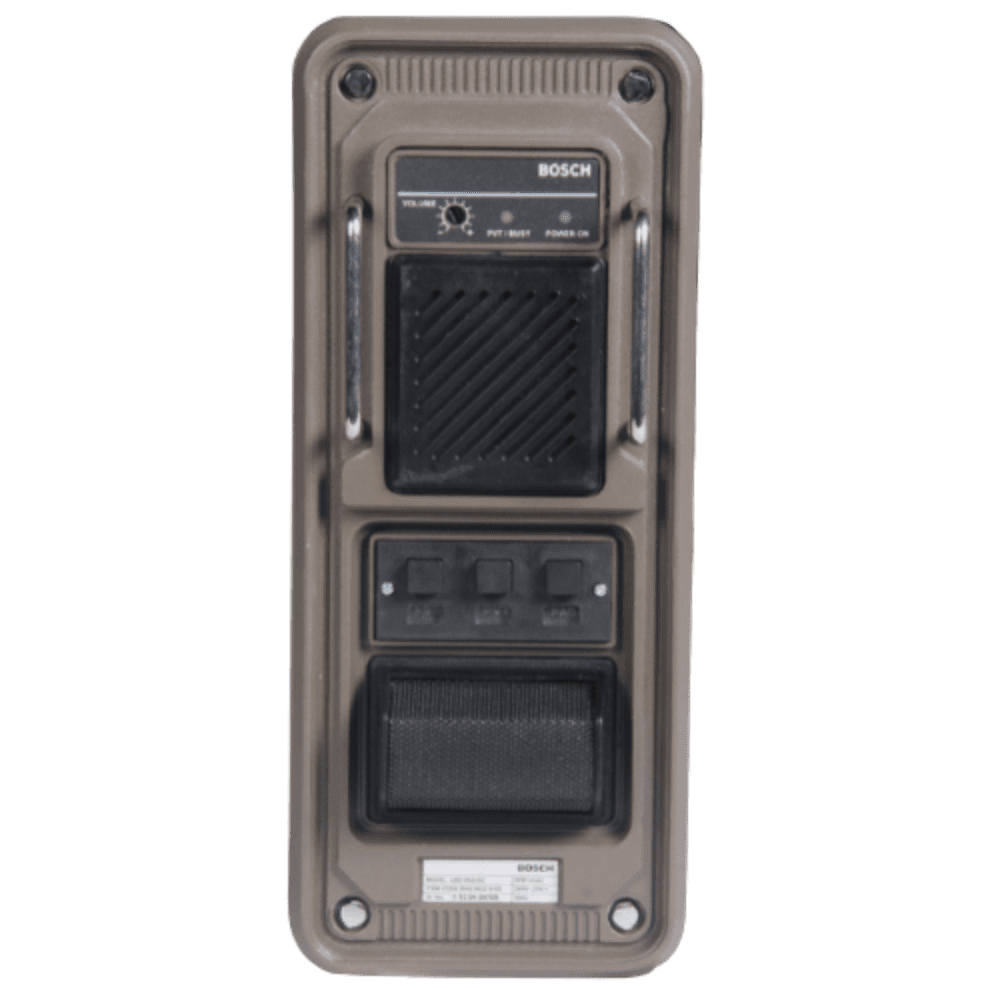

BOSCH LBD8922/02 Pilfer proof Wall Mounting station

BOSCH LBD8922/02 Pilfer proof Wall Mounting station for Industrial communication system is designed to withstand the harsh industrial environments. The handset stations are simple to operates, facilitates plant wide communication during critical situations smoothly.

System overview

BOSCH LBD8922/02 Pilfer proof Wall Mounting station outdoor station LBD8922 consists of a rear housing units and a plug in electronic module with built in microphone and loudspeaker. The electronic module provides 15 watt audio power for external loudspeakers, 800 m W power for internal loudspeakers with necessary pre amplification and signal processing. For ease of servicing the unit plugs into the rear housing unit with a multi pin connector arrangement. The station is pilfering proof with special triangular screws for opening the stations. Three snap action self return micro switches provided in the front panel give the necessary function for page channel, private channel and optional facilities.

Functions

Call establishment – The page function with the proper placement of the speakers attached to the call station will enable any announcement to be heard all over the plant. The party line function will facilitate the conversation of two or more people without being heard over the speakers once a call is established. The operation is
simple-the user lifts the handset from the call station and press the page button, makes the announcement to a specific zone or to the entire plant, the required individual(s) lifts nearby station and the duplex
communication can commence over the party line. Up to 6 individuals can participate in the conversation on on each party line.

Control and Operation

Paging announcement can be made by pressing the push button switch on the front panel. Loudspeaker can be muted using the push button switch. The functional switch can be customized as per the requirement like external call indicators, priority operations etc. Volume of the speaker can be controlled from front panel through the screw-driver adjustable volume controller.
