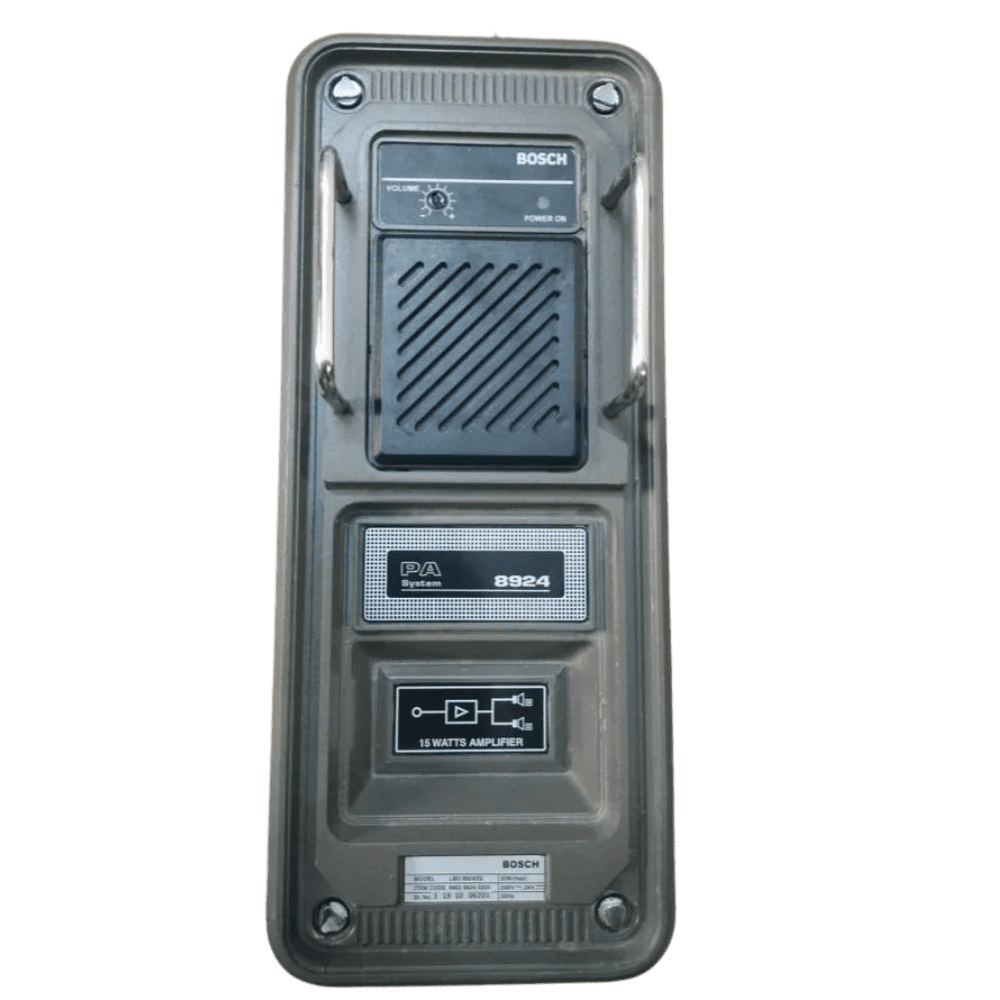

BOSCH LBD8924/02 Pilfer proof Wall Mounting station

BOSCH LBD8924/02 Pilfer proof Wall Mounting station extension amplifier works in tandem with Desktop Handset station. The amplifier can be mounted on the wall with the help of channels provided with the amplifier. The amplifier is tamper proof.

System overview

BOSCH LBD8924/02 Pilfer proof Wall Mounting station extension amplifier can be used along with LBD8904/00.The unit consists of a wall mounting module and the plug-in module. The wall mounting module consists of the mains transformer, output transformer and connector for external connections, and a fixed connector for connection to the plug-in module. The amplifier has volume control and power on buttons on the front which make it easy to operate. The plug in module consists of all the electronics and cable, this connector is plugged into the fixed connector in the wall mounting module. The plug -in module is mounted on to the wall mounting module by means of four ‘triangular head’ screws, which can be opened with a special tool. The unit can be mounted on the wall with the help of two channels provided with the station.

Functions

Call establishment – The page function with the proper placement of the speakers attached to the call station will enable any announcement to be heard all over the plant. The party line function will facilitate the conversation
of two or more people without being heard over the speakers once a call is established. The operation is
simple-the user lifts the handset from the call station and press the page button, makes the announcement
to a specific zone or to the entire plant, the required individual(s) lifts nearby station and the duplex
communication can commence over the party line. Up to 6 individuals can participate in the conversation on
on each party line.

Control and Operation

Paging announcement can be made by pressing the push button switch on the front panel. Loudspeaker can be muted using the push button switch. The functional switch can be customized as per the requirement like external call indicators, priority operations etc. Volume of the speaker can be controlled from front panel through the screw-driver adjustable volume controller
