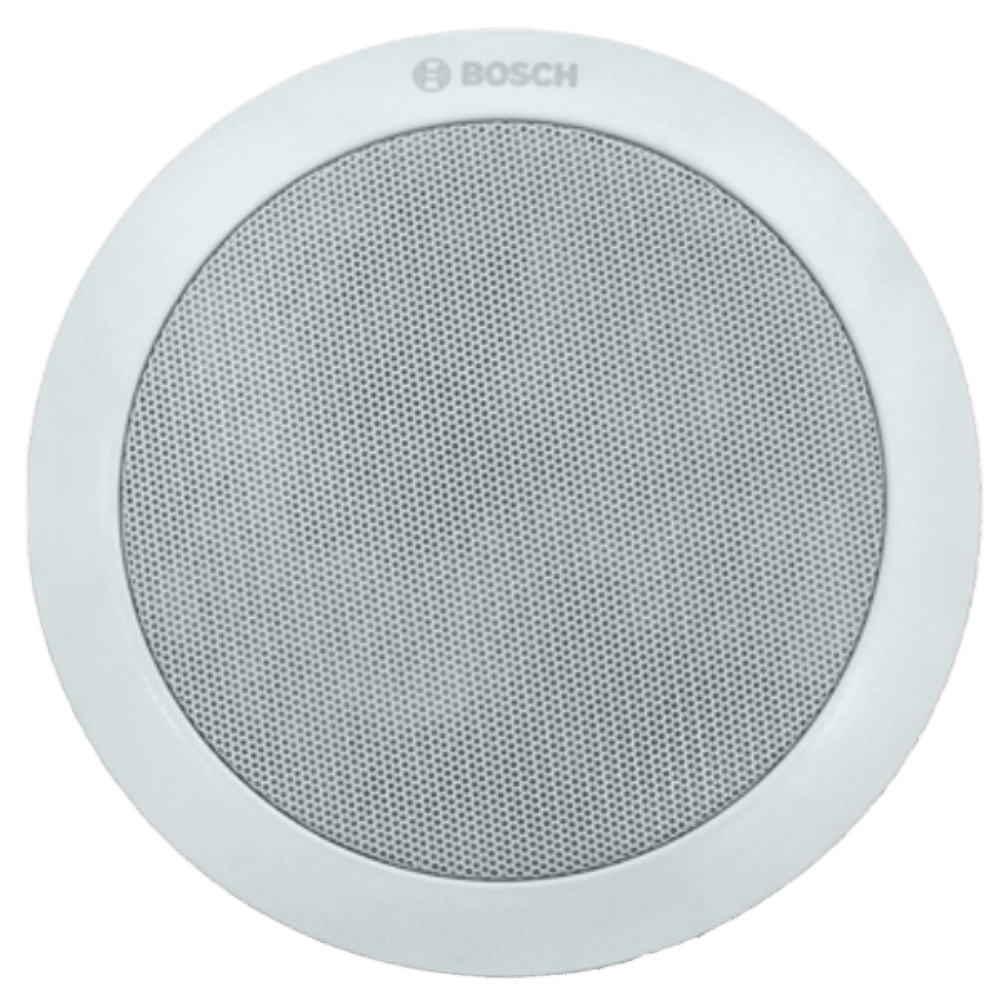

BOSCH LC1-PC20G6-6-IN 20 W Premium Sound Ceiling Speaker

(4 customer reviews)
BOSCH

LC1-PC20G6-6-IN Premium Sound Ceiling Loudspeaker 20 W

  • Excellent sound reproduction

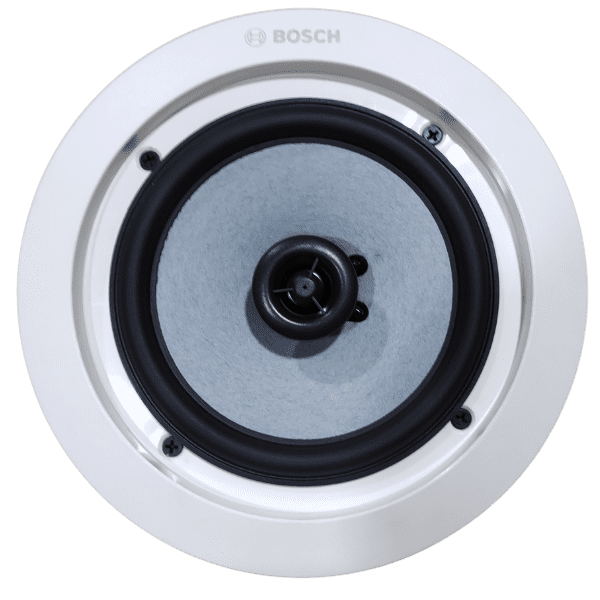

  • Co-axial full-range speaker with poly cone tweeter
  • Easy to install
  • Simple power tappings at full, half and quarter power
  • Tested for PHC with 100 hr continuous operation as per IEC60268-1&5

3,020.00 4,030.00 Excluding Tax

Compare

BOSCH LC1-PC20G6-6-IN 20 W Premium Sound Ceiling Speakeris a high-efficiency, coaxial full range premium ceiling loudspeaker providing excellent speech and music reproduction. This ceiling speaker gives sound distribution for a wide scope of ceiling mounted applications.
These are ideal for hotels, restaurants, shopping centers, convention centers, office buildings, etc. where both speaker and music reproduction of high quality is required
BOSCH LC1-PC20G6-6-IN 20 W Premium Sound Ceiling Speaker is a circular shaped, ABS material ceiling loudspeaker and has full-range performance in the bandwidth of 70 Hz to 20 kHz.
It comes with a poly cone tweeter for enhanced performance. The speaker has a line matching transformer to connect to a 100V output from an amplifier.
BOSCH LC1-PC20G6-6-IN 20 W Premium Sound Ceiling Speaker has power tappings at full power (20W), half power (10W), and quarter power (5W) and 1/8th power (2.5W) to connect at different power levels

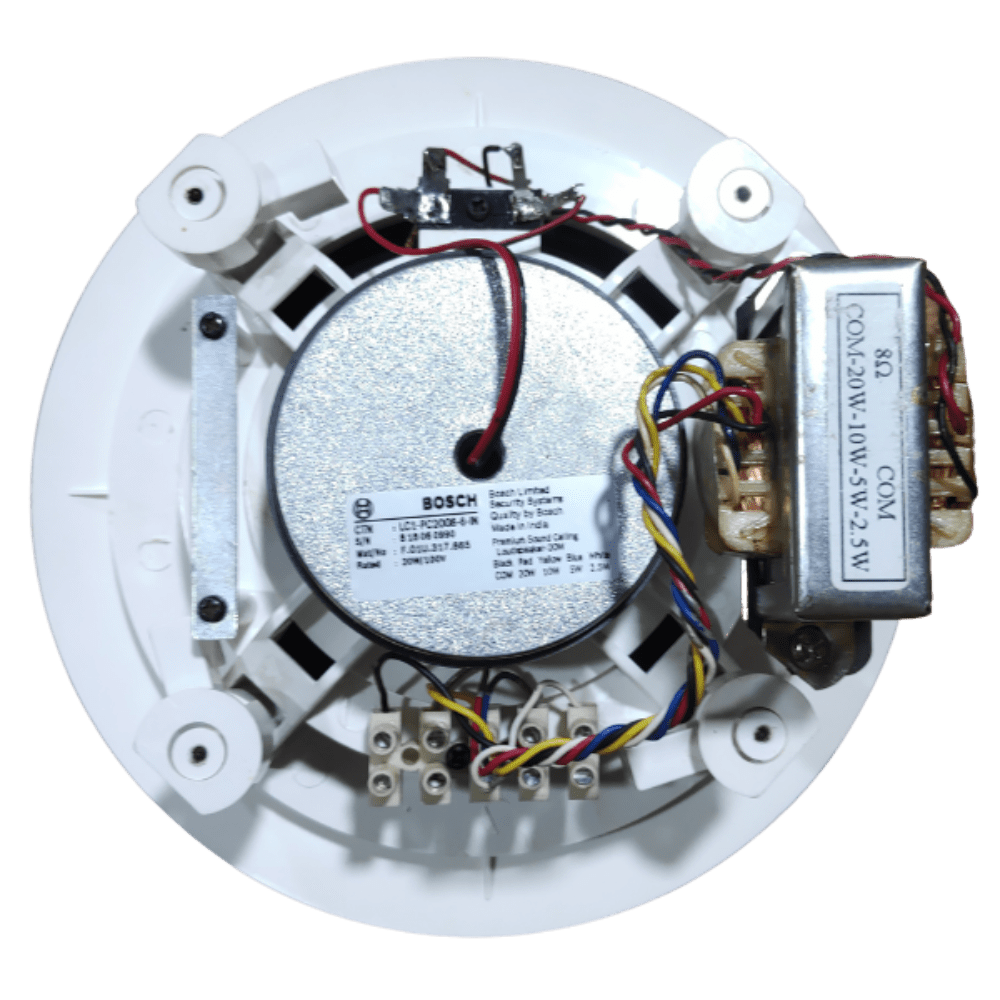

The LC1-PC20G6-6-IN model ceiling speaker is for direct connection to a 100 V line output and is finished in white (RAL 9003) color. The ceiling loudspeaker comes with a 100 V transformer with taps on the primary winding to allow different power tappings.
Nominal full-power, half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-1 and IEC 60268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that the speakers can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to greater customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
• 100 hours PHC (Powering Handling Capaclty) test in acc. to IEC 60268-1&5
• SAFE (Simulated Acoustic Feedback Exposure) test to withstand 50 sweep runs of square wave from low frequency to high frequency at twice the rated power, simulating feedback situation

LC1-PC20G6-6-IN

Brand

Technical specifications

Maximum power 30 W
Rated power (PHC) 20 W
Power taps at 100 V 20 W – 10 W – 5 W – 2.5 W
Sound pressure level 1 kHz oct, 1 W, @1 m 89 dB (±3 dB)
Effective frequency range (-10 dB) 70 Hz to 20 kHz
Opening angles (-6 dB) 1 K : > 180˚

2 K : 170˚

4 K : 72˚

8 K : 57˚

Rated voltage 100 V
Rated impedance at rated power 500 / 1000 / 2000 / 4000 Ohm
Safety Refer to EN 60065
Connection Screw terminal connector(ABS)
Driver / Speaker diameter 5 in / 8 in
Tweeter ½ inch poly cone
Color White (RAL 9003)
Weight 1.5 Kg
