BOSCH LCZ-UM12-IN 12W Ceiling Speaker
Ceiling Speaker
Speaker
BOSCH LCZ-UM12-IN 12W Ceiling Speaker

BOSCH LCZ-UM12-IN 12W Ceiling Speaker

(4 customer reviews)
BOSCH
Add to wishlist
Compare

The LCZ-UM12-IN is a 12 W loudspeaker with integrated circular metal grille. It has excellent audio performance and is easy to install with its integral mounting clips. The loudspeaker is suitable for high ceiling applications.

  • Excellent speech and music reproduction
  • High sound pressure level
  • Ideal for high ceiling applications

₹1,449.00 ₹1,930.00 Excluding Tax

Compare

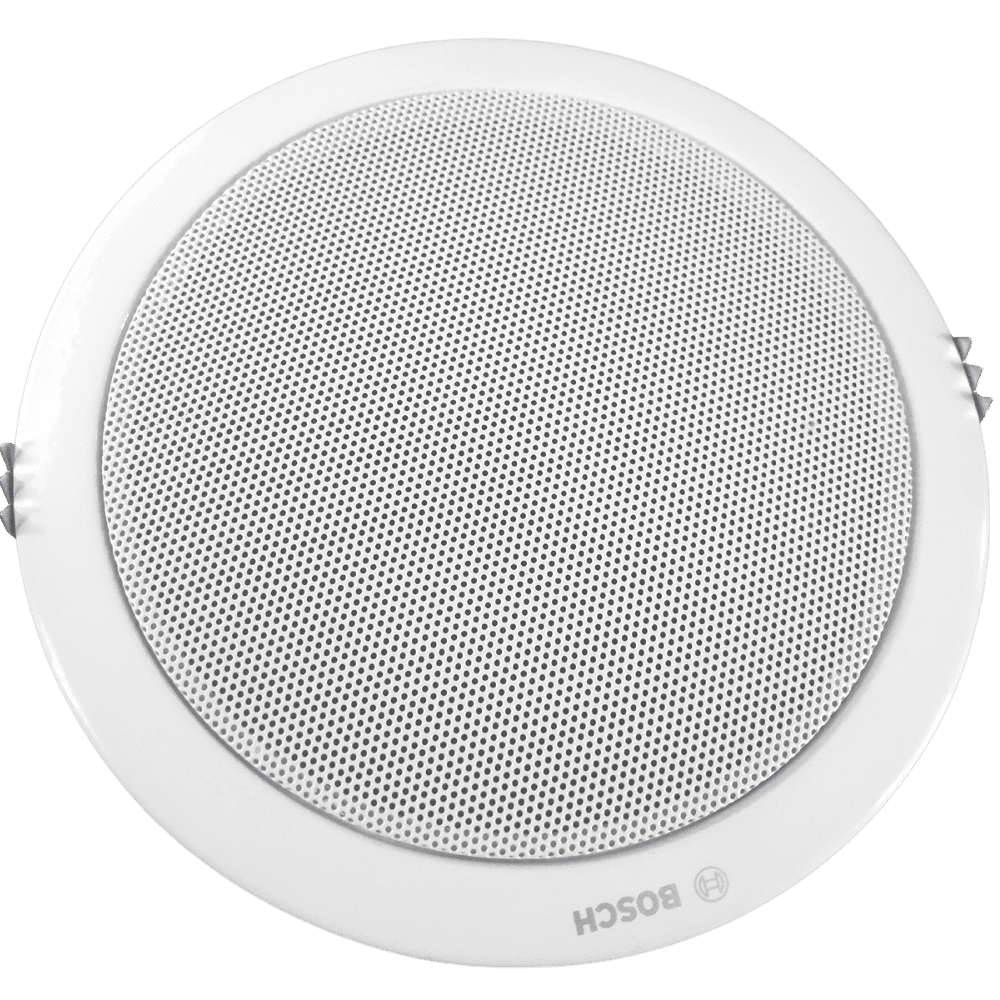

BOSCH LCZ-UM12-IN 12W   Ceiling Speaker has a perforated metal grille,finished in an attractive off-white color.
The LCZUM12-IN 12W Ceiling Speaker has a single piece 12W, dual cone loudspeaker.

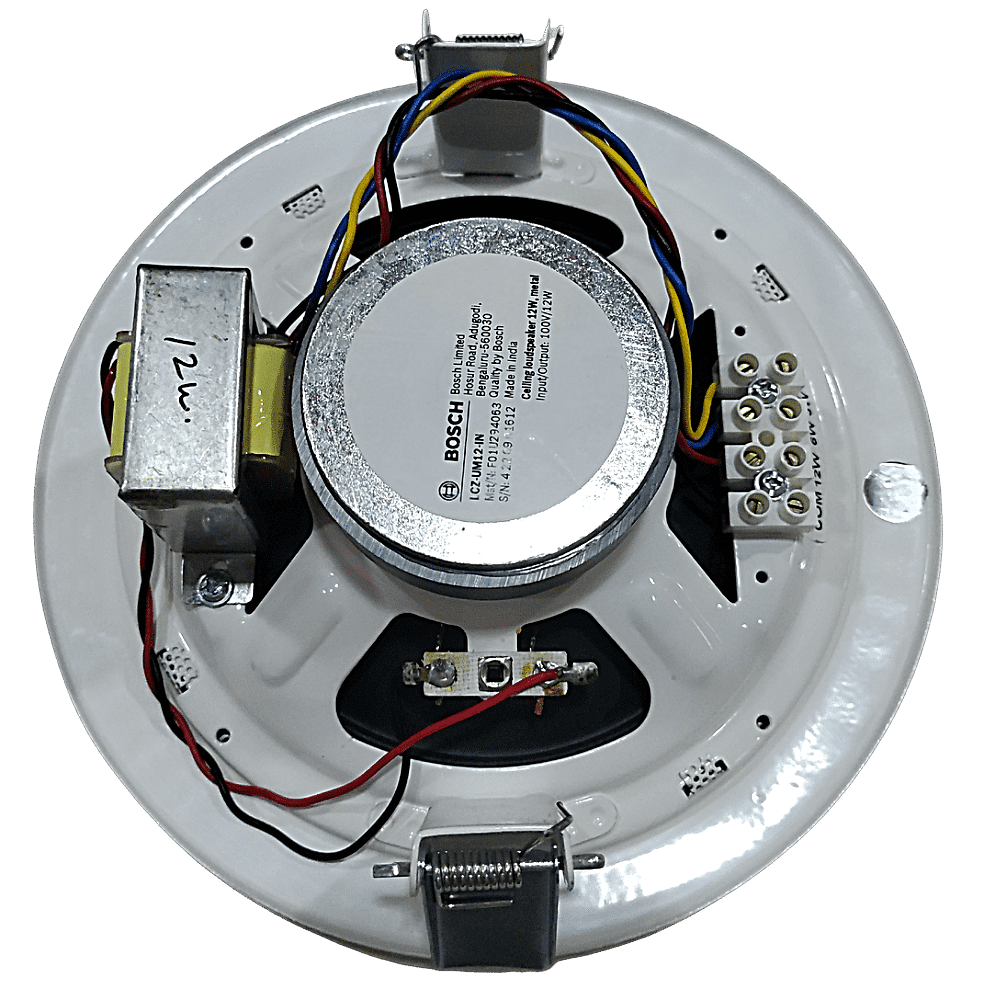

A 100V matching transformer is mounted on the back of the frame.
It can be used in areas with high ceiling as well as in shops, departmental stores, offices, sports halls, hotels and restaurants.
The loudspeaker has been tested for operating at rated power for 100 hours in accordance with IEC268-5 Power Handling Capacity (PHC) standards
Installation is easy with integral clips that securely hold the ceiling loudspeaker in its cut-out.
The line matching transformer mounted on the ceiling loudspeaker can be tapped for nominal full power, half power and quarter power radiation to adjust in 3dB steps.
BOSCH LCZ-UM12-IN 12W Ceiling Speaker is a 12 W loudspeaker with integrated circular metal grille. It has excellent audio performance and is easy to install with its integral mounting clips.
The loudspeaker is suitable for high ceiling applications.
Excellent speech and music reproduction
High sound pressure level
Ideal for high ceiling applications

SKU: LCZ-UM12-IN Category: Tags: , , , , ,

LCZ-UM12-IN

Brand

   Technical specifications

   Electrical

Rated Power 12W
Sound Pressure Level at 12W/1 W (1 kHz, 1 m)

12W/1W (4 kHz,1m)



101.8 dB / 91 dB

114.8 dB / 104 dB
Effective frequency range 100 Hz to 15 kHz(-10dB)
Opening angle (1kHz/4kHz,-6dB) 175° / 40°
Rated Impedance 833 Ohm
Rated input voltage 100V
Connector 4 Pole Screw Terminal

 Mechanical

Diameter(in mm) 200
Depth(in mm) 70
Weight 1.3 kg
Colour Off White

Environmental

Operating temperature -5 °C to +55 °C
Storage temperature -40 °C to +70 °C
