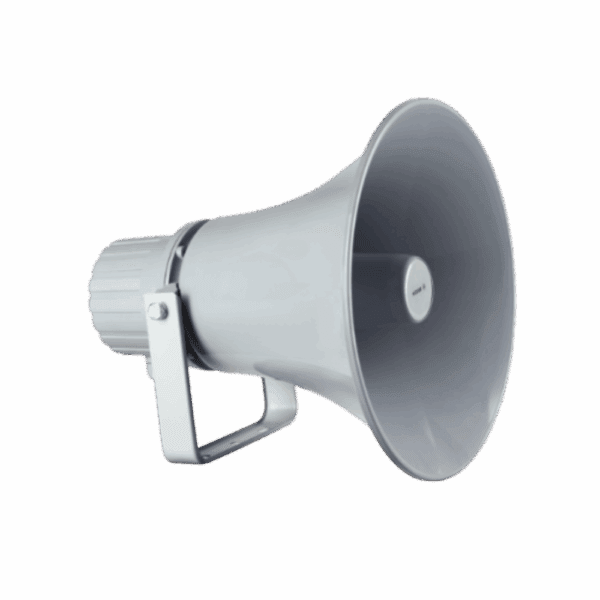

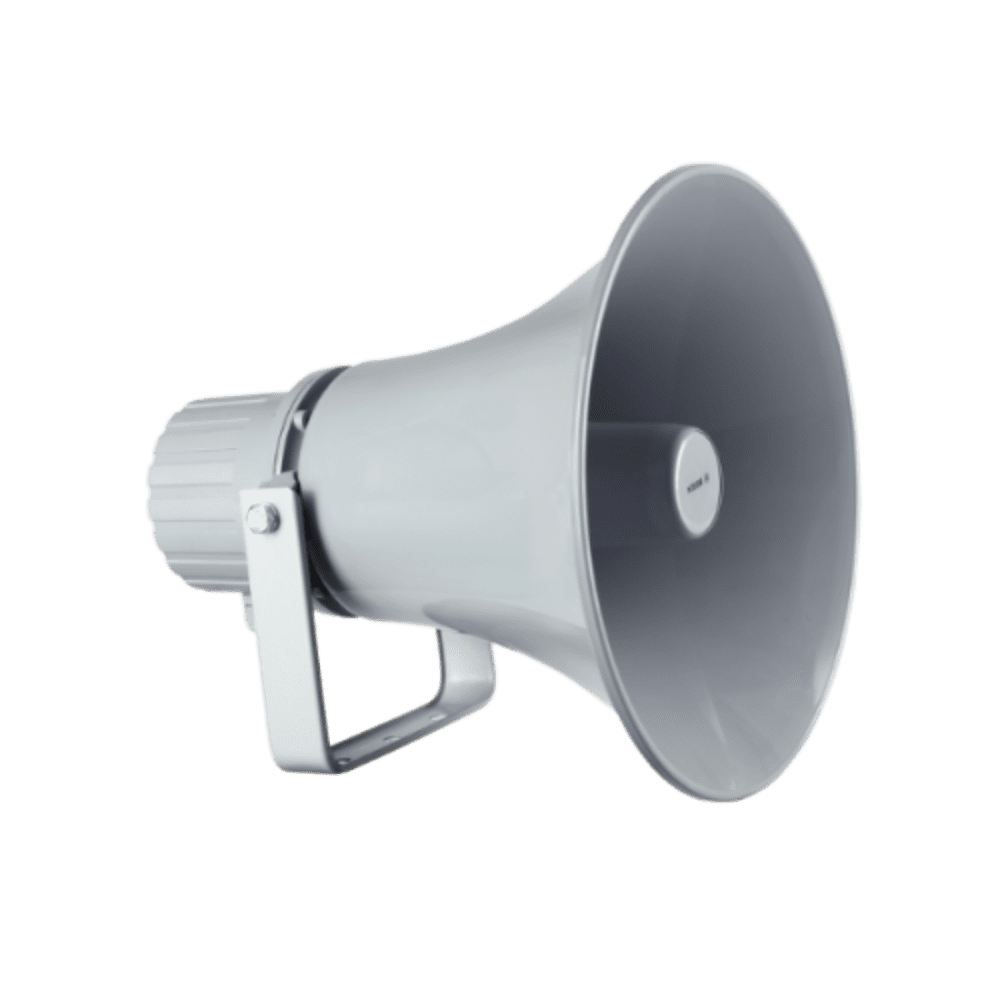

Bosch LH1-CC15-IN-15W Horn loudspeaker circular

Bosch LH1-CC15-IN-15W Horn loudspeaker circular is a high-efficiency horn loudspeaker providing excellent speech reproduction and sound distribution for a wide scope of outdoor applications.
It is ideal for sports grounds, places of worship, parks, exhibitions, factories and open meeting areas
Bosch LH1-CC15-IN-15W Horn loudspeaker circular and its horn and back-cover are made of ABS material.
The speaker has a line matching transformer to connect to a 100 V output from an amplifier. The loudspeaker has power tappings at full power, half power and quarter power to connect at different power levels.
The LH1-CC15-IN model horn speaker is for direct connection to a 100 V line output and is finished in light grey (RAL 7035) color.
Bosch LH1-CC15-IN-15W Horn loudspeaker circular is water and dust protected. The horn loudspeaker includes a 100 V transformer with taps on the primary winding to allow different power tappings. Nominal full-power, half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping. A two meter fourcore cable is fitted to the horn for connectivity.
Each core is a different color, and is connected to one of the primary tappings on the transformer. Color code identification is provided on the product label.
The horn loudspeaker is supplied complete with sturdy adjustable mounting brackets, allowing the sound beam to be accurately directed
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-1 and IEC 60268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that the speakers can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to greater customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
• Lab test for water and dust protection acc. to IEC 60529 IP66
• Lab test for wind force test acc. to NEM6702:2007 + A1:2008 Bft 11 (static condition)
• Lab test for climatic tests acc. to IEC 60068-x-xx
