PRA-PSM24 Power supply module 24V PRAESENSA

BOSCH PRA-PSM24 Power supply module 24V PRAESENSA

(4 customer reviews)
BOSCH
Add to wishlist
Compare

BOSCH PRA-PSM24 Power supply module 24V PRAESENSA

  •  Universal mains input voltage
  •  Power factor correction
  •  Protection with automatic recovery
  •  Approved to power a PRAESENSA system controller and a PAVIRO controller and router
  •  Compact and DIN‑rail mountable

₹40,090.00 Excluding Tax

Compare

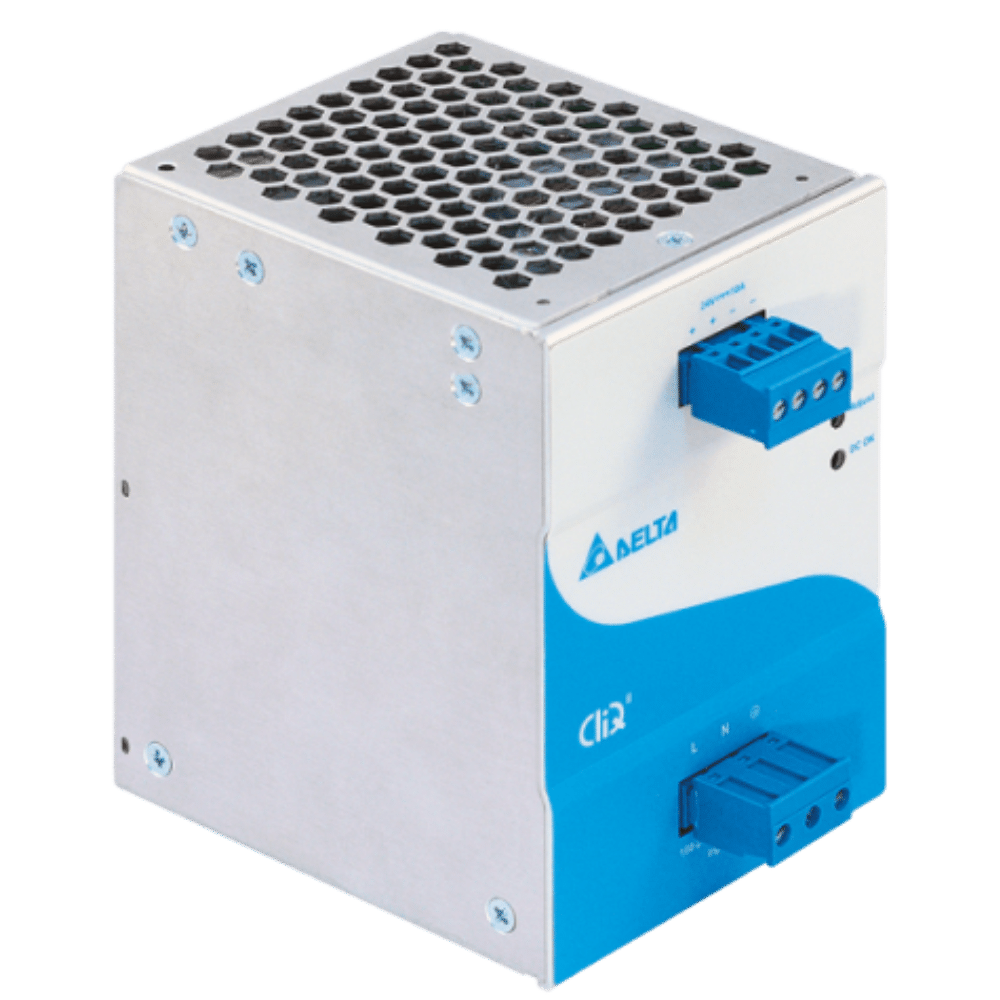

BOSCH PRA-PSM24 Power supply module 24V PRAESENSA is a compact DIN‑rail mounted power supply, delivering 24 V at up to 10 A continuously. This power supply is an OEM power supply, made for Bosch by Delta Power Supply, as a cost effective alternative to the PRAESENSA multifunction power supply PRA-MPS3 to power a PRAESENSA system controller or other devices and utilities that need 24 V, in case the additional functions and characteristics of the multifunction power supply are not needed.
BOSCH PRA-PSM24 Power supply module 24V PRAESENSA can also power Bosch PAVIRO controllers and routers in case no battery backup is needed, as alternative to the Bosch PLN‑24CH12 battery charger and power supply. The PRA-PSM24 is not certified for EN 54‑4 and similar standards.

Functions

Mains power supply
• Compact DIN‑rail mounted power supply, delivering 24 V at up to 10 A continuously, for powering various utilities and devices in Public Address systems.
• Universal mains input with power factor correction to maximize the amount of power that can be taken from a single phase power distribution network.
• The mains is supplied via a 3‑pole screw plug that requires the module to be installed by professional installers and mounted in a safe place, without user access.
• Adjustable output voltage, 24 to 28 V.
• For fail safe redundancy it is possible to use two 24 V power supplies for one PRAESENSA system
controller, one connected to its 24 V input A and the other to input B. In that case, the power supply with the highest voltage will supply the power, the other one is available as backup.

Protections
• Overvoltage protection with automatic recovery.
• Overload protection with automatic recovery.
• Over-temperature protection with automatic recovery.



SKU: PRA-PSM24 Category: Tag:

PRA-PSM24

Brand

Technical specifications

Operating voltage (VAC) 85 – 264 VAC
Power consumption (W) 265 W maximum
Inrush current (mA) 35000 mA maximum
Output voltage (VDC) 24 – 28 VDC
Output current (A) (maximum continuous) 10 A
Output current (A) (maximum peak) 15 A
Nominal voltage (VDC) 24 VDC
Maximum heat loss (BTU/h) 85 BTU/h
Power factor 0,90
Air pressure (hPa) 750 – 1070 hPa
Material Aluminum
Cooling Convection
Mounting type Rail-mounted; Wall- mounted
Protection Overheat; Overload; Overvoltage
Degree of protection (IEC 60529) IP20
Operating temperature (°C) -25 – 80 °C
Operating relative humidity, non-condensing (%) 5 – 95%
Storage temperature (°C) -40 – 85 °C
Dimension (H x W x D) (mm) 121 x 85 x 124 mm
Weight (kg) 1,10 kg
Power transfer
Mains power supply input
Input voltage range 100 to 240 VAC
Input voltage tolerance 85 to 264 VAC
Frequency range 50 to 60 Hz
Inrush current < 35 A (115 V, 230 V)
Power factor (PF) 0.9 to 1.0
Leakage current to safety ground < 1 mA (240 V)
24 VDC output

Nominal DC output voltage Output voltage range Maximum continuous current Derating

Maximum peak current



24 V

24 to 28 V

10 A

-0.25 A/°C above 50°C 15 A
Power consumption

Active mode, rated power                              265 W



Heat loss

Active mode, rated power                              90 kJ/h (85 BTU/h)
Protection
Overvoltage Overload

Over-temperature

 Automatic recovery Automatic recovery Automatic recovery
