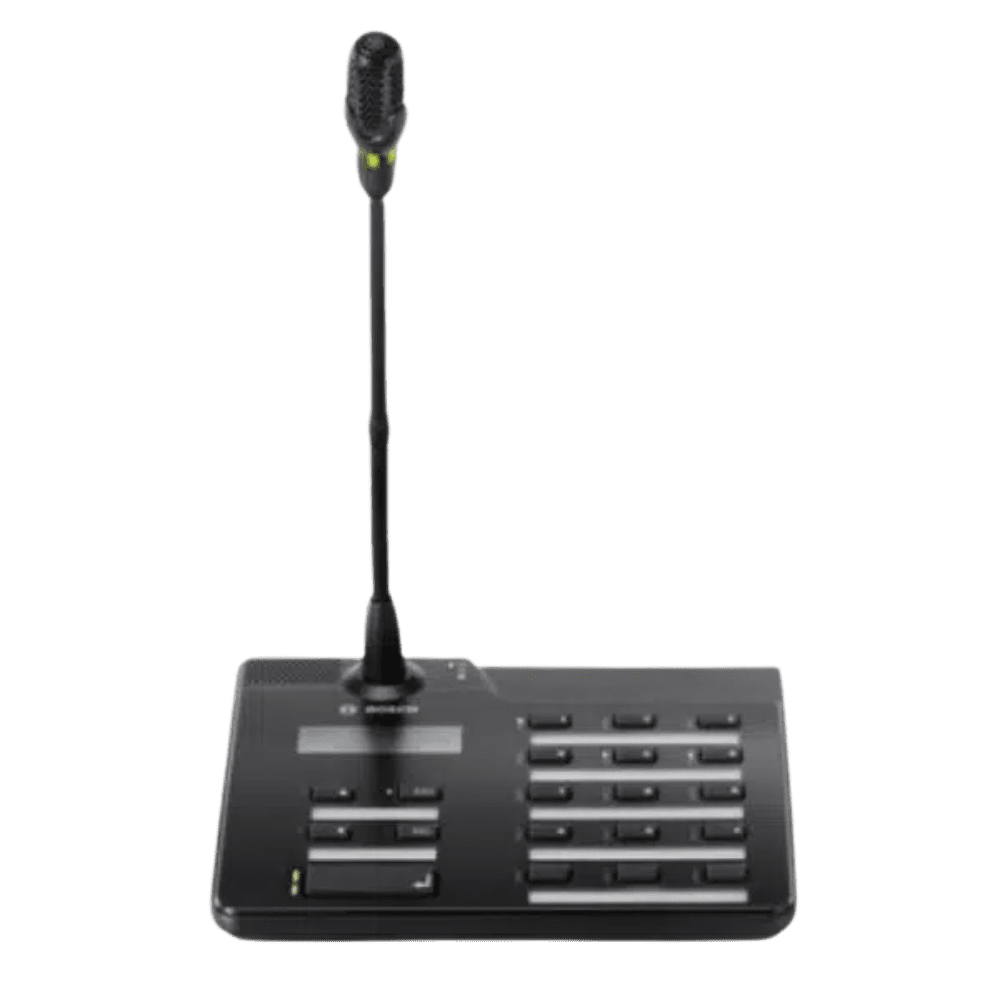

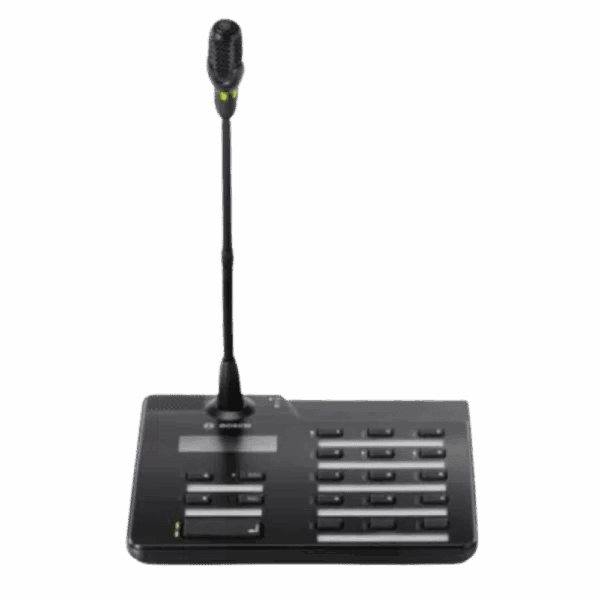

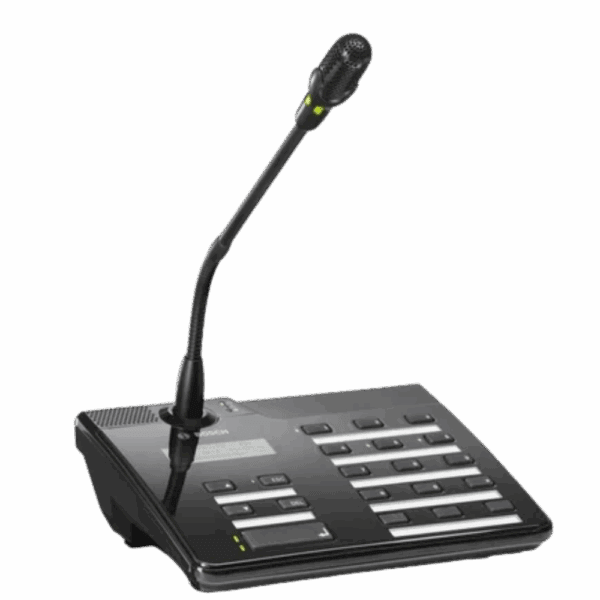

BOSCH PVA-15CST Call station
BOSCH PVA-15CST Call station
BOSCH PVA-15CST Call station
BOSCH PVA-15CST Call station
BOSCH PVA-15CST Call station
BOSCH PVA-15CST Call station

BOSCH PVA-15CST Call station

(4 customer reviews)
BOSCH
Add to wishlist
Compare

Call station for the PAVIRO system; has gooseneck microphone with pop shield and permanent monitoring.

  • Call station with soft touch button for PAVIRO system
  • 15 freely programmable buttons
  • Customization via built-in display and keys
  • Provision for installing emergency button and key switch
  • EN 54-16 system certification

₹144,898.00 Excluding Tax

Compare

BOSCH PVA-15CST Call station is a call station for the PAVIRO system.
As standard, the call station has a gooseneck microphone with pop shield and permanent
monitoring, a total of 20 buttons, an illuminated LC display, and an integrated loudspeaker. The call station can be modified to suit the user’s requirements by connecting up to five PVA-20CSE call station extensions, each with 20 customizable selection buttons
Other properties:

• Five menu/function keys (pre-programmed) – one green or one yellow indicator light per button
• 15 selection buttons (customizable) – two indicator lights (green/red) per button
• Numeric zone selection (can be activated during IRIS-Net configuration)
• Label with transparent covering – the label can be changed at any time
• Can be used as a standing or desk/rack flush mounted device
• Internal monitoring with error logging – complies with all relevant national and international standards
• Easy configuration – use of the Configuration Wizard or IRIS-Net software System overview 1

SKU: PVA-15CST Category: Tags: ,

PVA-15CST

Brand

Technical specifications

Electrical

CAN BUS port 10, 20, or 62.5 kbit/s, 1 RJ-45, max. length 1000 m
Maximum mic input level -21 dBu
Maximum line input level +4 dBu
Maximum NF output level +12 dBu
Microphone:
•         Nominal acoustic input level

•         Frequency response

•         Signal to noise ratio

 •         85 dBSPL

•         250 Hz – 10 kHz (-6dB)

•         > 60dB
Buttons 5 pre-programmed, 15 programmable zone/function keys
Indicator lights Power (green), Fault (yellow), Alarm (red)

Green or yellow LED per pre- programmed menu button

Green and red LED per programmable zone/function key
LC display Back-lit LC display (122 32 pixel)
Ports 1 CST BUS port (Control data + Audio + Power supply, RJ-45)

1 audio source (line level, phone jack)

1 microphone port (phone jack)

1 EXT OUT port (call station extension, RJ-12)
DC power input 15-58 V
Maximum supply current (without call station extensions) Standby/Idle/Announcement/Alert: 24 V / 80 mA / 1.92 W
Maximum supply current (with 5 call station extensions) Standby/Idle/Announcement/Alert: 24 V / 190 mA / 4.56 W
Operating temperature -5 °C to +45 °C (+23 °F to +113 °F)
Storage temperature -40°C to +70 °C (-40 °F to +158 °F)
Humidity (non-condensing) 5% to 90%
Altitude Up to 2000 m
Dimensions (HxWxD) 166 mm x 200 mm x 66 mm (without microphone)
Weight (net) 0.6 kg
Mouting Standalone; 19 in. rack
Color Black
