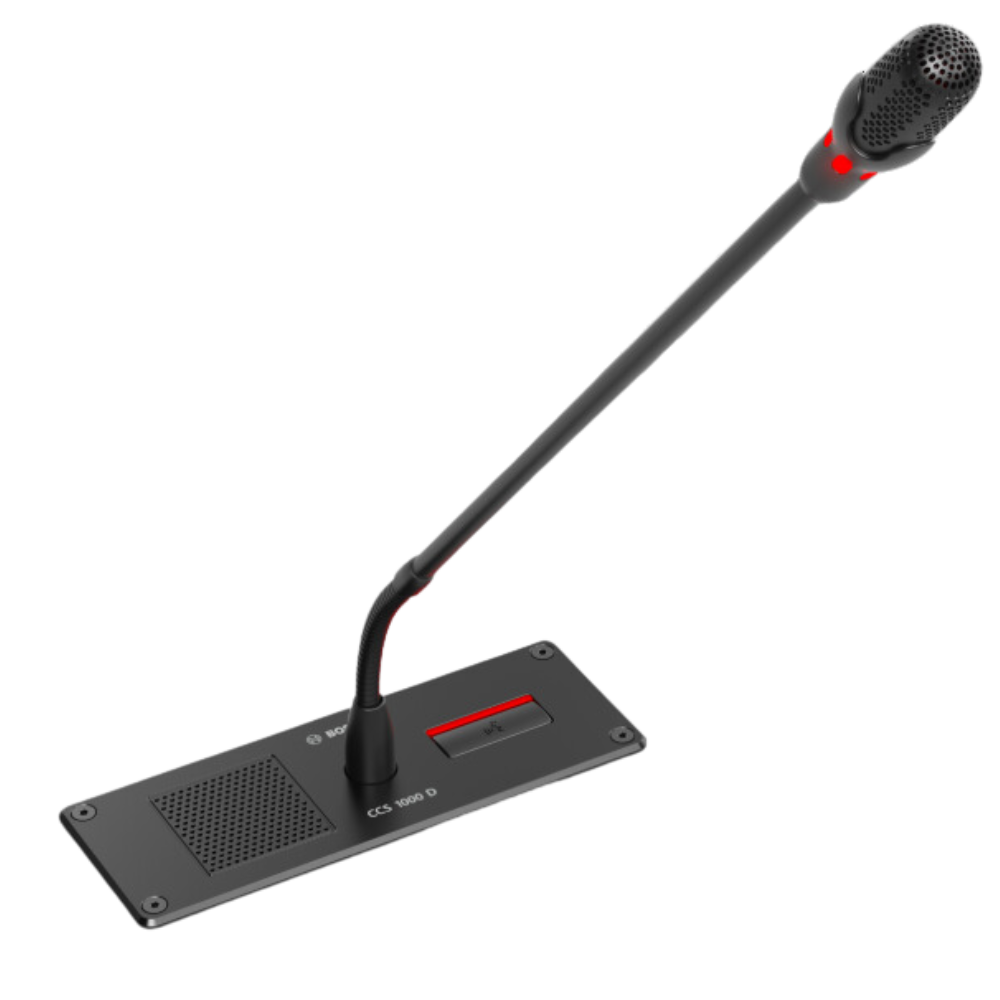

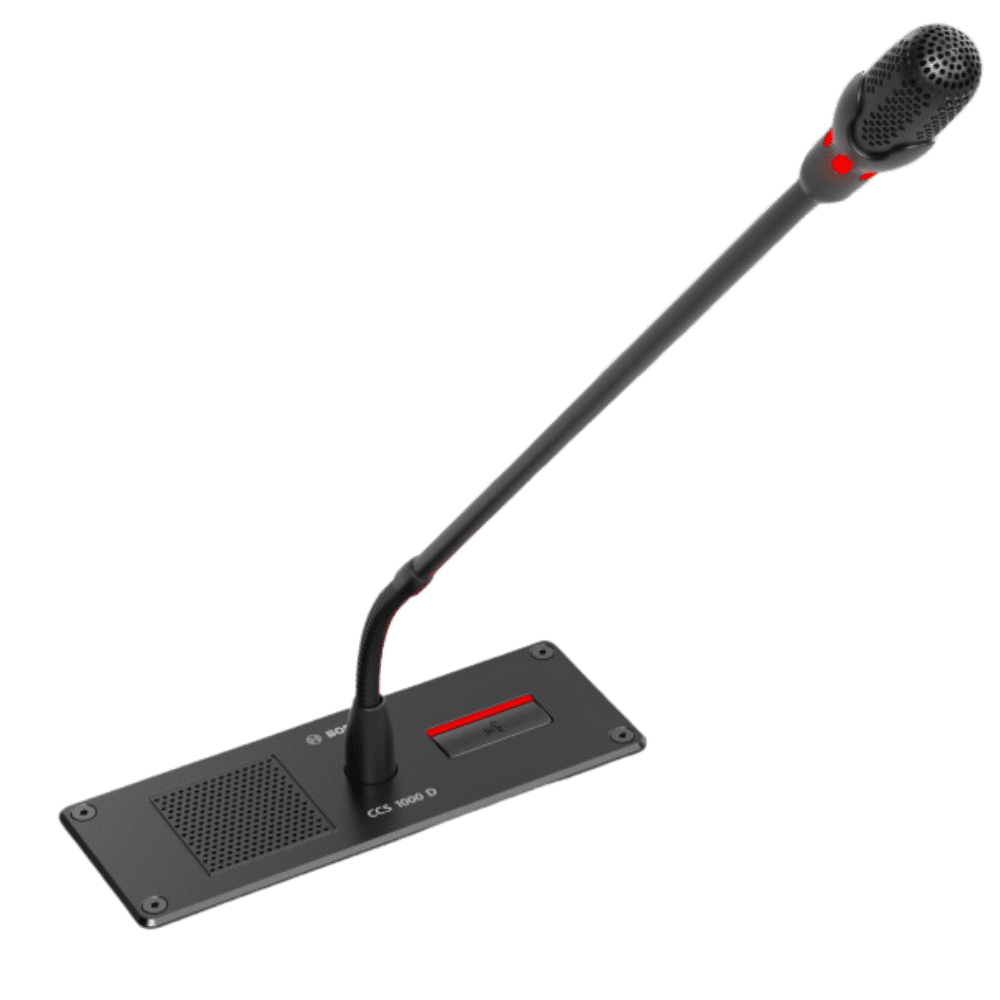

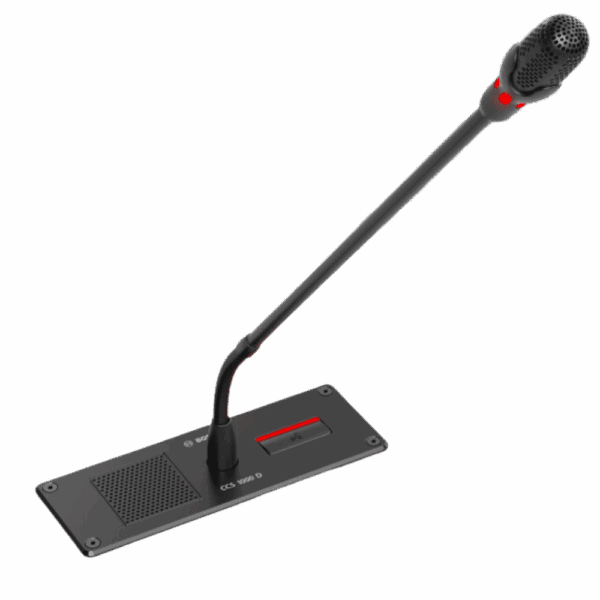

CCSD-FDL Flush discussion device long mic

CCSD-FDL Flush discussion device long mic is the perfect solution for conference rooms where table space is key. The flexible stem allows the participant to adjust the microphone to the most comfortable position.

Possible-to-speak indication

A white possible‑to‑speak indicator above the microphone button indicates when the microphone can be activated.

Request‑to‑speak indication

A green request‑to‑speak indicator above the microphone button and in the head of the microphone indicate when a request‑to‑speak has been added to the waiting list. The indicators flash green when the request‑to‑speak is first in the waiting list.

Short or long microphone with flexible stem The fixed microphone with flexible stem can be easily adjusted to suit the user. For maximum comfort, a short 310 mm (12.2 in) or long 480 mm (18.9 in) microphone stem is available.

Built-in loudspeaker with volume control To ensure for optimum intelligibility, the loudspeaker volume of all Discussion Devices is centrally controlled from the Control Unit.

Face-to-face meeting feeling An authentic face‑to‑face meeting feeling is achieved by allowing the loudspeaker and microphone to be on at the same time

CCSD-FDL Flush discussion device long mic GSM immunity

Immunity to mobile phone interference ensures clear, uninterrupted discussion.

Controls and indicators

• Microphone button.
• Color-coded LED indicator above the microphone button that shows the states: microphone on,

request‑to‑speak, and possible‑to‑speak.

• Light‑ring indicator in the head of the microphone.
• Concealed initialization button at the side of device for reassigning the network address.

CCSD-FDL Flush discussion device long mic Connections

• 1 x 6‑pole circular female connector with cable locking recess for loop‑through connection of the

discussion devices.

• 1 x 2 m (78.7 in) cable with a 6‑pole circular male connector with provision for a cable lock.
