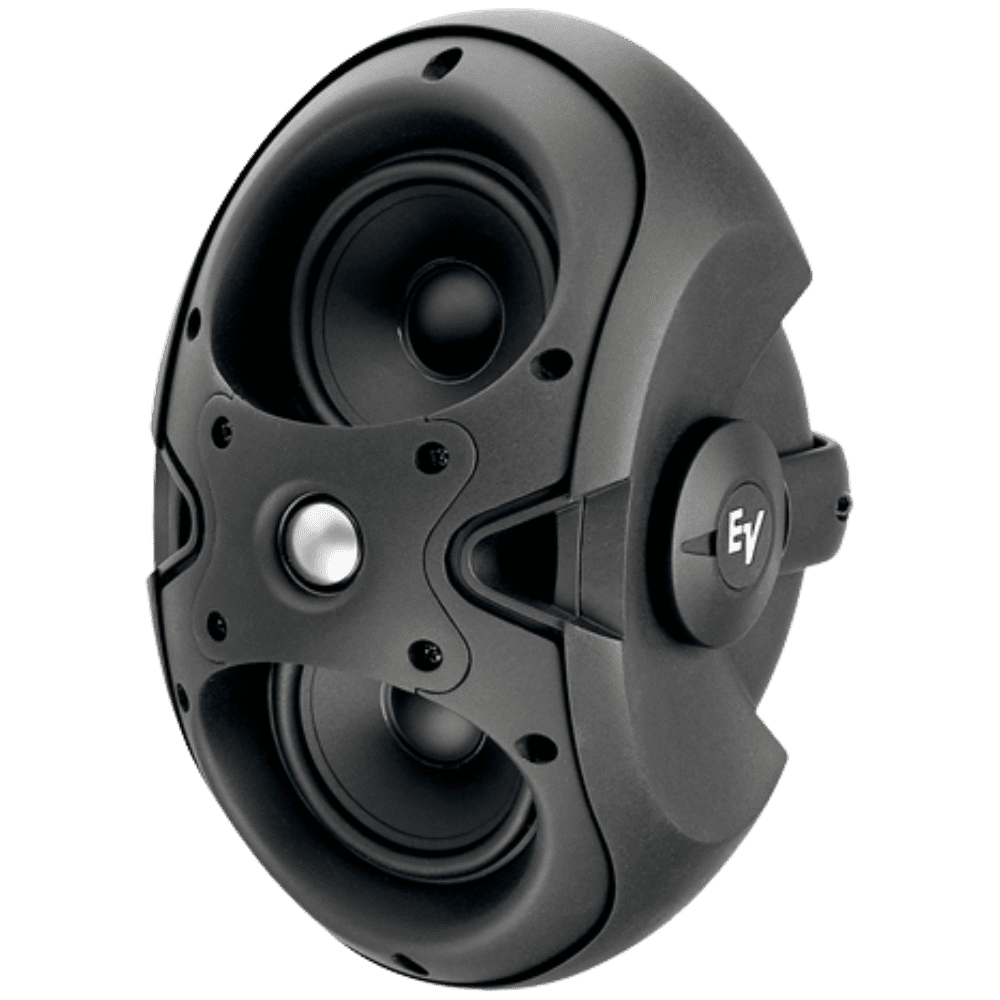

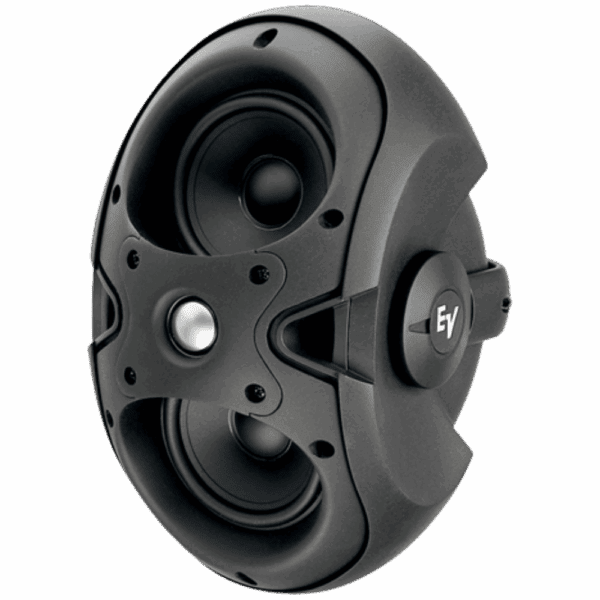

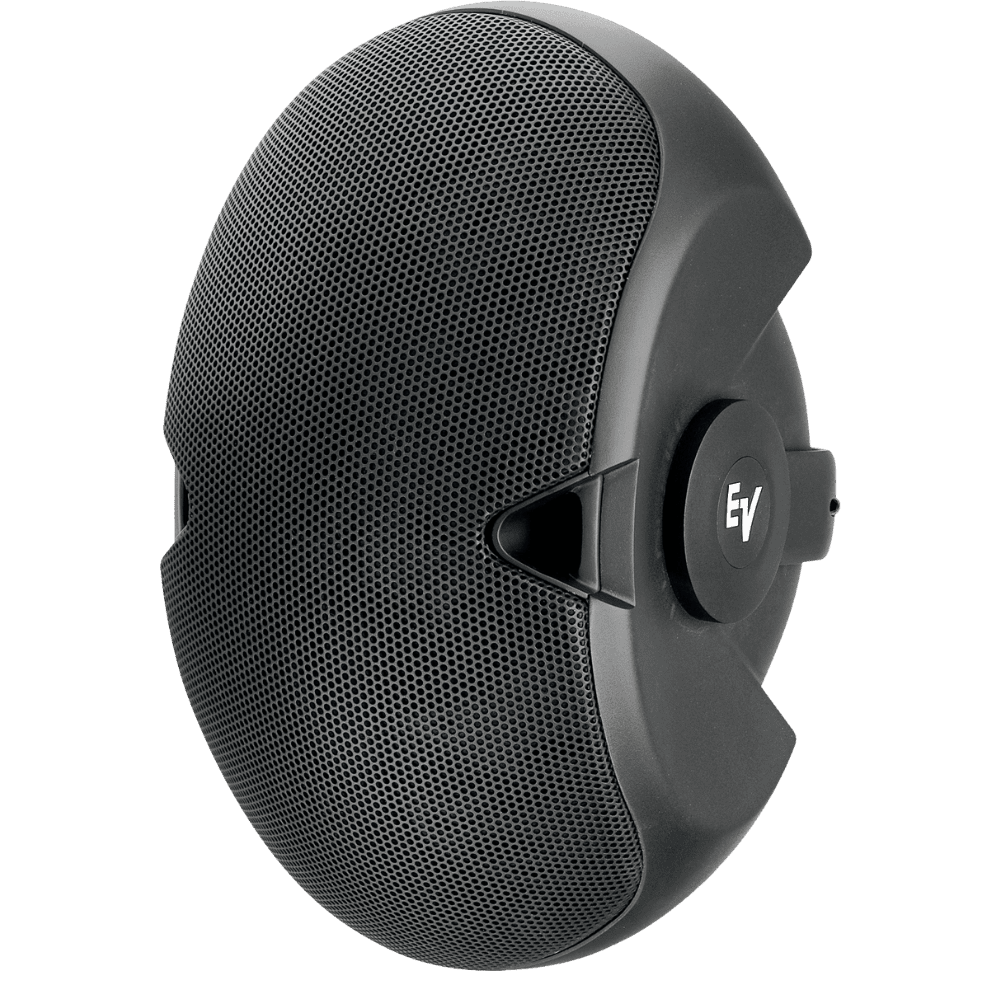

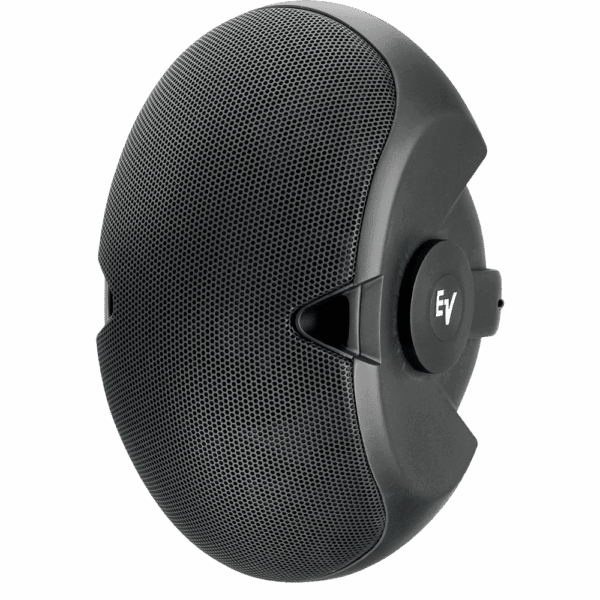

Electro-Voice EVID 6.2 – Dual 6″ 2‑way surface-mount loudspeaker

(3 customer reviews)
Electro-Voice
Availability:

Out of stock


Electro-Voice EVID 6.2 – Dual 6″ 2‑way surface-mount loudspeaker

  •  Line-array enhanced coverage control
  •  Organic, unobtrusive shape
  •  Strong-Arm-Mount™ for easy, flexible aiming
  •  Full-bandwidth overload protection
  •  Weather resistant – Conforms to Mil Spec 810 and IEC 529 IP 34
  •  Dual 6-inch LF transducers for extended bass and greater power handling and output
  •  Ti direct-radiator HF transducer, Neodymium structure
  •  High sensitivity
  •  Magnetically shielded
  •  Zinc-plated grilles
  •  Transformer Versions

103,848.00 Excluding Tax

Compare

Electro-Voice EVID 6.2 – Dual 6″ 2‑way surface-mount loudspeaker is an extended-range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its extended range and smooth bass provide ample SPL levels in larger environments such as shopping malls, sports bars, health clubs, and so on. Electro-Voice EVID 6.2 – Dual 6″ 2‑way surface-mount loudspeakers three-dimensional elliptic baffle symmetrically locates the 1” Ti direct radiator high-frequency element with a Coherent Coverage Waveguide in front of and between the 6” low-frequency drivers. The careful shaping, location, and 10° splaying of the LF units provide coverage control by the resulting line array. Lobbing is controlled by physically “shadowing” the LF transducers from each other over the bandwidth where they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety. All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.

Electro-Voice EVID 6.2

Brand

Technical Specifications:

Frequency Response ¹ ( z -10 dB) 62 Hz – 20 kHz
Power Handling ² 300W Cont. Prog./600W Peak
Sensitivity ³ 94 dB, 1W/1m
Impedance 8 ohms
Max SPL 118 d
Horizontal Coverage⁴ 100°
Vertical Coverage⁴ 80°
Crossover Frequency 1.6 kHz
LF Transducer 2 x 6″ (100 mm)
HF Transducer 1″ (25 mm)
Protection Full Syste
Weather Resistance Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splash proof ratings
Swing x Rotation 100° x 90°
Terminals Phoenix Connector
Enclosure Material ABS (paintable)
“t” Version Wattage Taps 70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass
Dim (H x W x D) 16.5″ x 9″ x 11.75″ (419 mm x 228 mm x 298 mm)
Net Weight (each) 12 lbs (5.3kg)
Shipping Weight (pair) 27 lbs (12.3 kg)
Included Accessories SAM™, hex key
