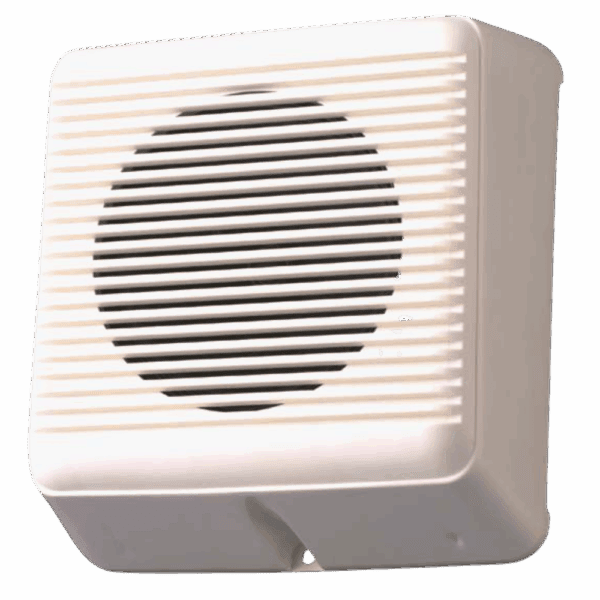

TOA BS-633A Wall Mount Speaker

TOA BS-633A Wall Mount Speaker

(3 customer reviews)
TOA
Availability:

Available on backorder
Add to wishlist
Compare
  • Ideally suited for BGM and announcements
  • Compact design
  • Quick and easy installation
  • High cost-effectiveness
  • A push-in terminal allows easy cable connections and bridge wiring

Compare

TOA BS-633A Wall Mount Speaker made of ABS resin and can be hooked or mounted directly on the wall. The push-in type input terminal makes cable connections easy and allows bridge wiring. The input impedance can be easily changed by changing the tap position of the transformer from the rear side of the speaker.

• Ideally suited for BGM and announcements
• Compact design
• Quick and easy installation
• High cost-effectiveness
• A push-in terminal allows easy cable connections and bridge wiring

Category: Tags: , , , , , ,

TOA BS-633A

Brand

Specifications
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 91 dB (1 W, 1 m)
Frequency Response 120 – 15,000 Hz (-20 dB)
Speaker Component 12 cm (5) cone-type
Mounting Hole Case front mount: 184 mm (7.24)
Fixing hole mount: 120 mm (4.72)
Cable Requirements 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 – Φ1.6 mm (equivalent to AWG 20 – 14)
7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection Push-in connector (bridging terminal)
Operating Temperature -10℃ to +50℃ (14℉ to 122℉)
Finish Case: ABS resin, off-white
Rear board: Hard board
Dimensions 173 (W) x 195 (H) x 101 (D) mm (6.81 x 7.68″ x 3.98″)
Wall Mounting Dimensions Case front mount: 184 mm (7.24)
Fixing hole mount: 120 mm (4.72)
Weight 780 g (1.72 lb)
Included Accessories Speaker mounting screw (4 x 35 (0.16 x 1.38″) … 2
