TOA BS-634T Wall Mount Speaker shall be a 5″ (12cm) cone type enclosure suitable for wall mounting with a supplied plug-in speaker receptacle accessory. The input connector shall be an M4 screw terminal, with an 11 mm distance between barriers. Four settings of selectable attenuation shall be OFF, -12dB, -6dB, and 0dB. The speaker impedance shall be 1.7kohm (6W) for a 100V line, and 1.7kohm (3W) for a 70V line. The output sound pressure level at a distance of 1m with a 1W input level applied shall be 90 dB SPL. The speaker shall have a frequency response of 120 – 18,000Hz (-20dB).
TOA BS-634T Wall Mount Speaker enclosure shall be constructed of fire resistant HIPS resin. The grille shall be constructed of surface-treated steel plate net. The speaker shall be available in off-white color. The unit shall have dimensions of 210 (W) x 330 (H) x 80 (D) mm (8.27” x 12.99” x 3.15”), and a weight of 1.3 kg (2.87 lbs.).
The speaker shall be a TOA model BS-634
TOA Wall Mount Speakers

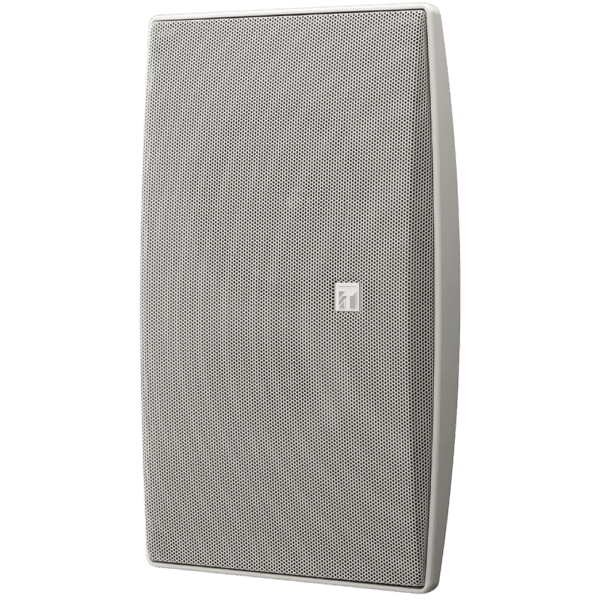

TOA BS-634T Wall Mount Speaker
Availability:
Available on backorder
The BS-634T can be installed easily on the wall with help of the plug-in speaker receptacle.
Key features
• Easy and quick installation
• Attractive design based on the golden ratio
• Input impedance selector with rotary switch
• Fire resistant according to UL 94-V0
Compare
TOA BS-634T
| Brand |
|---|
technical specification:
| Rated Input | 6 W |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W) |
| 70 V line: 1.7 kΩ (3 W) | |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 120 Hz – 18 kHz |
| Speaker Component | 12 cm (5) cone-type |
| Attenuation | OFF (NC), 1 (-12 dB), 2 (-6 dB), 3 (0 dB) |
| Input Terminal | M4 screw terminal, distance between barriers: 11 mm (0.43) |
| Finish | Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent), off-white (RAL 9010 or equivalent color) |
| Net: Surface-treated steel plate, off-white (RAL 9010 or equivalent color), paint | |
| Dimensions | 208 (W) x 327 (H) x 79 (D) mm (8.19 x 12.87″ x 3.11″) |
| Weight | 1.3 kg (2.87 lb) |
| Included Accessories | Speaker receptacle …1, Wall mounting screw …2 |
