TOA PC-648R Ceiling Speakers Integrated with a resin panel and speaker frame, the TOA PC-648R Ceiling Speakers is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
Ceiling Speakers
TOA PC-648R Ceiling Speakers
Availability:
Available on backorder

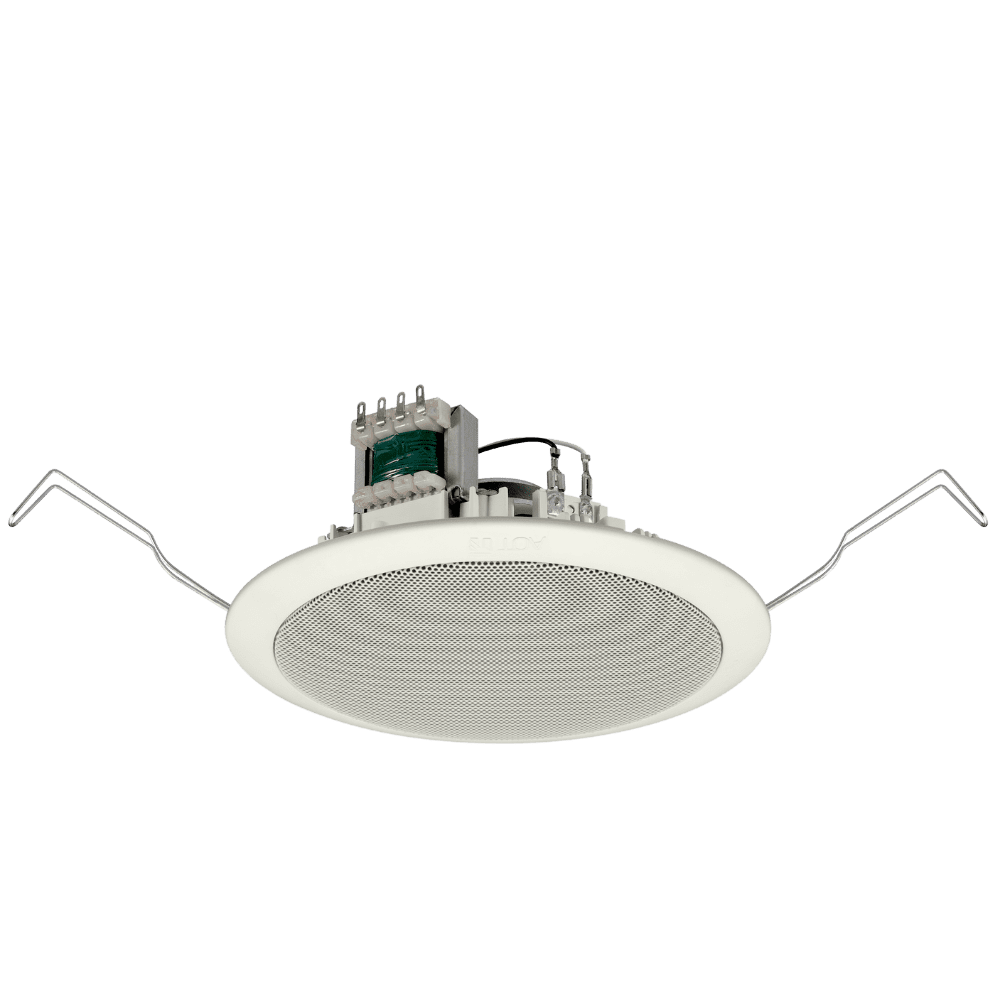

PC-648R Ceiling Speaker
Integrated with a resin panel and speaker frame, the PC-648R is a ceiling mount speaker with a metal grille attached. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
Features:
• Spring clamp mechanism for easy speaker mounting to the ceiling
• 12cm (5”) cone type
₹1,750.00 Excluding Tax
CompareTOA PC-648R
| Brand |
|---|
Specification
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) (500 – 5,000 Hz, pink noise) |
| Frequency Response | 100 – 18,000 Hz (peak -20 dB) |
| Speaker Component | 12 cm (5″) cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ145±5 mm (φ5.71″±0.2″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″) |
| Speaker Mounting Method | Spring clamp |
| Finish | Baffle: Polypropylene resin, off-white (RAL 9010 or equivalent color) Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color) paint |
| Dimensions | φ168 × 77 (D) mm (φ6.61″ × 3.03″) |
| Weight | 470 g (1.04 lb) |
