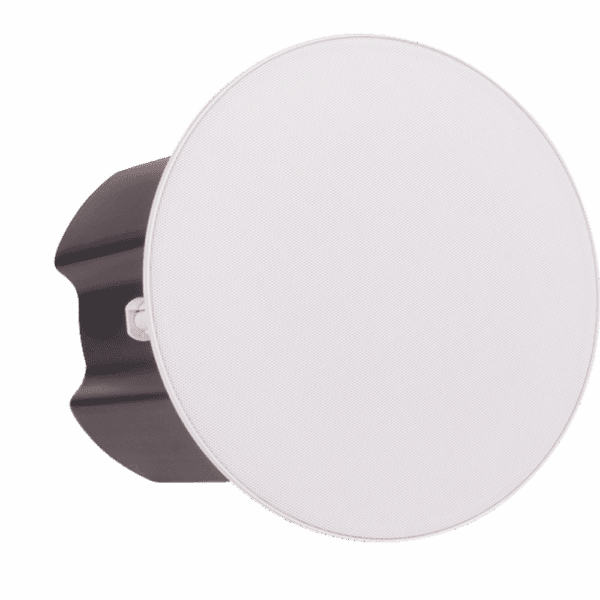

ZYCOO SC-15 Network Ceiling Speaker

ZYCOO
Availability:

Out of stock


ZYCOO SC-15 Network IP Ceiling Speaker  is a compact high-performance SIP enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting and streamed high definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.

26,325.00 Excluding Tax

Compare

ZYCOO SC-15 Network Ceiling Speaker Dual-speaker driver design – low frequency bass driver unit and high-frequency tweeter driver unit.
Provides premium sound quality, enhances the audience experience.
Support ZYCOO BM11 Mic w/ Push-to-Talk Button, easy connection with the BM11 to achieve the talk- back functionality.
ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be extremely easy and time-saving.
Built-in SIP support, can be integrated with ZYCOO IP Audio Center or third-party SIP server, SIP paging using wideband G.722 codec which provides crystal clear HD voice.
Music playback through ZYCOO IP Audio Center using streamed media. HD MP3 audio files supported for superior quality of background music.
Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. External power supply can be used if required.
Support Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use under the same local network.
Built-in amplifier with local or server controlled volume output level, SC15 guarantees full and consistent coverage and also the audio comfort and the flab.
ZYCOO SC-15 Network Ceiling Speaker  supports three lines SIP accounts, in which users may register the endpoint in more than one system for achieving different functionality purposes

Brand

Speaker
Speaker component: 5.25″ woofer unit + 1″ tweeter unit
Sensitivity: 85dB/1m/1W
Max sound pressure level: 100dB
Amplifier: Built-in Class D Amplifier
Rated power: 8Ω 15W
Frequency range: 70Hz – 20KHz
Coverage pattern: 90°H 90°V 30m²
Acoustics: Mono
Audio
Audio codecs: G.722, G.711 A-law, G.711 U-law, Opus
Audio streaming: MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo
Network
Interface: RJ45 10BASE-T/100BASE-TX PoE
Protocols: SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH
Administration
Configuration: Web interface or auto provisioning server
Provisioning method: MQTT IoT Protocol
Mechanical Properties
Memory: 128MB RAM, 256MB Flash
Power input: PoE IEEE802.3at or DC24V2A
Casing: Surface-treated steel
Grille: Surface-treated metal mesh plate
Color: White
Weight: 3.45KG (7.6lb)
Dimension: φ240 x 210 mm (7.2 x 6.3 in)
Mounting method: high strength anti-corrosion clamps
Key: Press and hold for 3 seconds to announce IP address;

Press and hold for 10 seconds to reset device to factory defaults.

Environmental
Installation environment: Indoor
Operating temperature: -20℃ – 50℃ (-4℉ – 122℉)
Storage temperature: -40℃ – 70℃ (-40℉ – 158℉)
Humidity: 10% – 95% RH Non-condensing
Approvals
Approvals: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017,

FCC Part 15B Class A
