ZYCOO SC10 Network Ceiling Speaker Coaxial speaker driver design ā low frequency bass driver unit and high-frequency tweeter driver unit.
Provides premium sound quality, enhances the audience experience.
ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be extremely easy and time-saving.
Built-in SIP support, can be integrated with ZYCOO IP Audio Center or third-party SIP server, SIP paging using wideband G.722 codec which provides crystal clear HD voice.
Music playback through ZYCOO IP Audio Center using streamed media. HD MP3 audio ļ¬les supported for superior quality of background music.
Standard PoE+ (IEEE 802.3at) support, simple and easy installation with a single network cable.
External power supply can be used if required.
Support Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use under the same local network.
Built-in ampliļ¬er with local or server controlled volume output level, SC10 guarantees full and consistent coverage and also the audio comfort and the ļ¬ab.
ZYCOO SC10 Network Ceiling SpeakerĀ supports three lines SIP accounts, in which users may register the endpoint in more than one system for achieving diļ¬erent functionality purposes

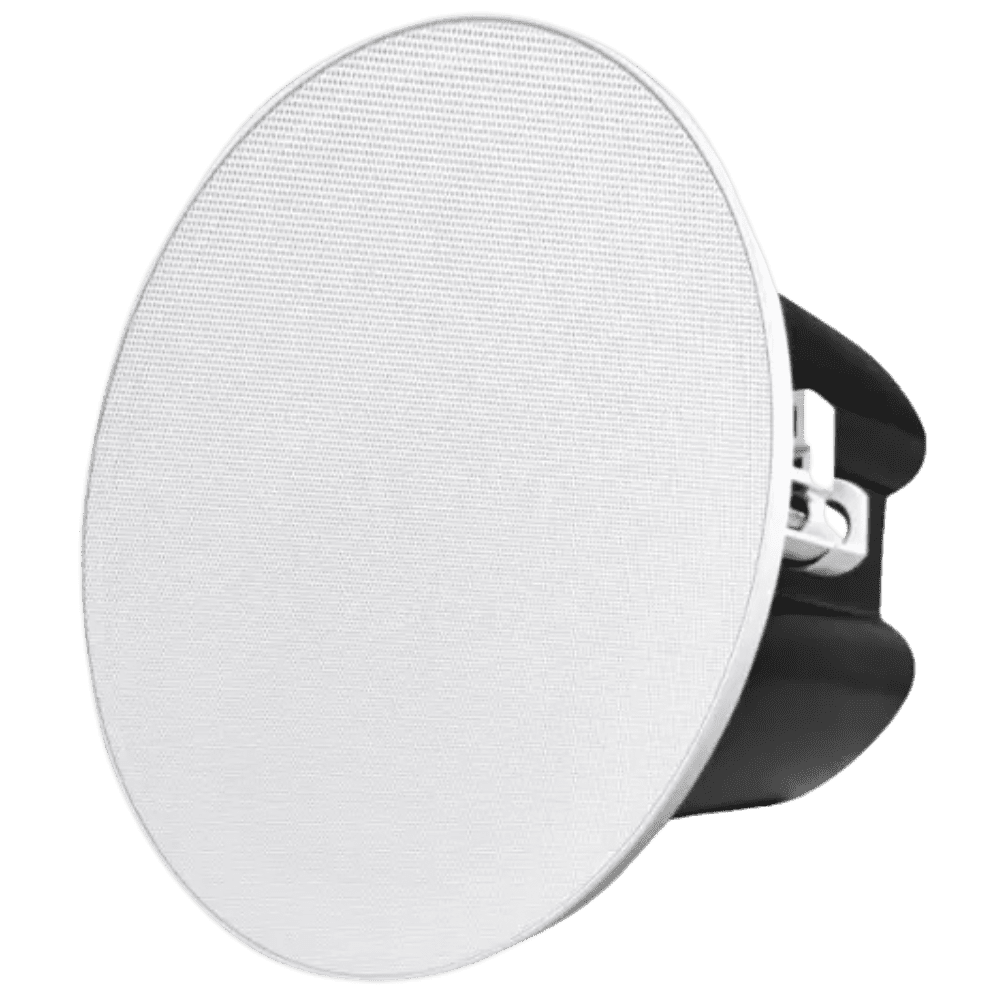

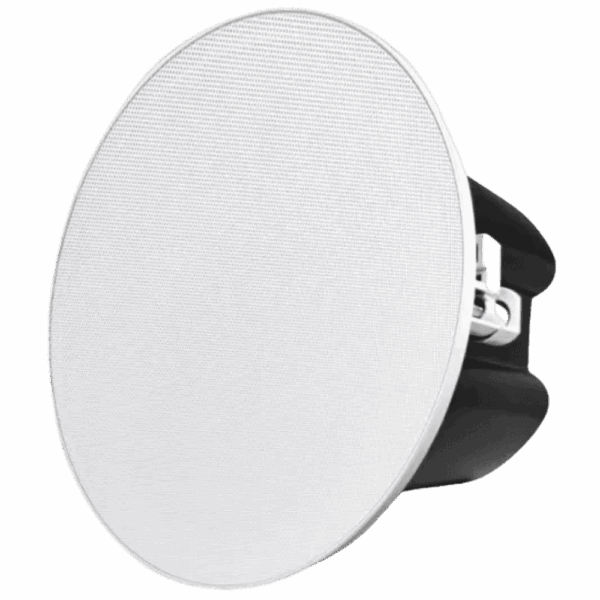

ZYCOO SC10 Network Ceiling Speaker
Out of stock
ZYCOO SC10 Network IP Ceiling SpeakerĀ is a compact high-performance SIP enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting and streamed high definition music playback.
The high efficient, Coaxial speaker driver units will provide you with a uniquely advanced listening experience.
₹21,041.00 Excluding Tax
Compare| Brand |
|---|
| Speaker | |
| Speaker component: | 4″ woofer unit + 1″ tweeter unit |
| Sensitivity: | 90dB/1m/1W |
| Max sound pressure level: | 100dB |
| Ampliļ¬er: | Built-in Class D Ampliļ¬er |
| Rated power: | 8Ī© 10W |
| Frequency range: | 70Hz ā 20KHz |
| Coverage pattern: | 90Ā°H 90Ā°V 30mĀ² |
| Acoustics: | Mono |
| Audio | |
| Audio codecs: | G.722, G.711 A-law, G.711 U-law, Opus |
| Audio streaming: | MP3 sampling rate 8 ā 48KHz, bit rate 64 ā 320kbps, mono or Stereo |
| Network | |
| Interface: | RJ45 10BASE-T/100BASE-TX PoE |
| Protocols: | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Administration | |
| Conļ¬guration: | Web interface or auto provisioning server |
| Provisioning method: | MQTT IoT Protocol |
| Mechanical Properties | |
| Memory: | 128MB RAM, 256MB Flash |
| Power input: | PoE IEEE802.3at or DC 12V-2A |
| Casing: | Black plastic cement rear cover |
| Grille: | Surface-treated metal mesh plate |
| Color: | White |
| Weight: | 1.4KG |
| Dimension: | 150mm(H)*205mm(W)*205mm(D) |
| Mounting method: | high strength anti-corrosion clamps |
| Key: | Press and hold for 1 second and release to broadcast the IP address.
Press and hold for 10 seconds and release to restore the factory settings. |
| Environmental | |
| Installation environment: | Indoor |
| Operating temperature: | -20ā – 50ā (-4ā – 122ā) |
| Storage temperature: | -40ā – 70ā (-40ā – 158ā) |
| Humidity: | 10% – 95% RH Non-condensing |
| Approvals | |
| Approvals: | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014,
EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B |
