ZYCOO SH30 Network Horn Speaker Built-in 30W amplifier, 400Hz to 8KHz frequency range and 117dB max sound pressure level, the audibility and intelligibility of voice paging are guaranteed even in noisy and large spaces.
With IP65 protection rating and well thermal durability. SH30 is suitable for outdoor installation and operations, even in extreme outdoor environments.
ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be extremely easy and time-saving.
Built-in SIP support, can be integrated with ZYCOO IP Audio Center or third-party SIP server, SIP paging using wideband G.722 codec which provides crystal clear HD voice.
Music playback through ZYCOO IP Audio Center using streamed media. HD MP3 audio files supported for superior quality of background music.
Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. External power supply can be used if required.
ZYCOO SH30 Network Horn Speaker supports three lines SIP accounts, in which users may register the endpoint in more than one system for achieving different functionality purposes

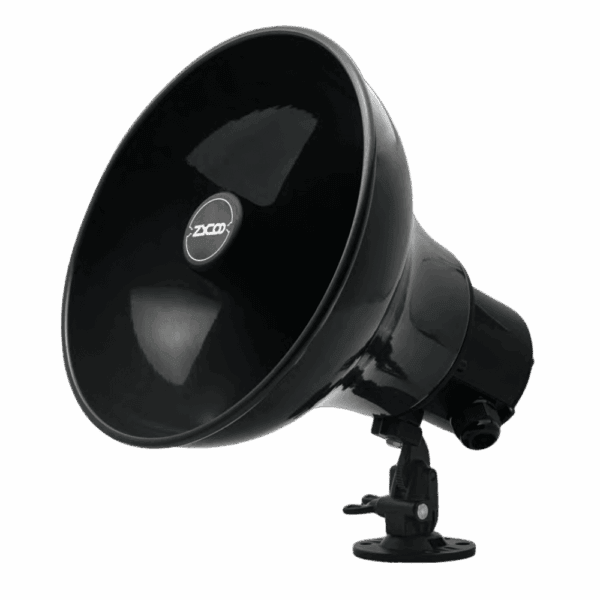

ZYCOO SH30 Network Horn Speaker
Out of stock
ZYCOO SH30 is a SIP enabled IP horn speaker which provides exceptionally clear and intelligible voice for SIP paging, notification/tone broadcasting and streamed background music. It is suitable to be deployed in outdoor and other open spaces for public notifica- tions and public safety purposes
₹47,190.00 Excluding Tax
Compare| Brand |
|---|
| Speaker component: | 2″midrange driver unit |
| Sensitivity: | 105dB/1m/1W |
| Max sound pressure level: | 117dB |
| Amplifier: | Built-in 30W Class D Amplifier |
| Rated power: | DC: 8Ω 30W or PoE: 8Ω 18W |
| Frequency range: | 400Hz – 8KHz |
| Coverage Pattern: | 50°H 50°V, effective distance 70m |
| Acoustics: | Mono |
| Audio codecs: | G.722, G.711 A-law, G.711 U-law, Opus |
| Audio streaming: | MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
| Interface: | RJ45 10BASE-T/100BASE-TX PoE |
| Protocols: | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP,
RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Administration | |
| Configuration: | Web interface or auto provisioning server. |
| Provisioning method: | MQTT IoT Protocol |
| Mechanical Properties | |
| Memory: | 128MB RAM, 256MB Flash |
| Power input: | PoE IEEE802.3at/DC24V2A |
| Casing: | Surface-treated 1060 aluminium |
| IP Rating: | IP65 |
| Color: | Grey |
| Weight: | 2.68KG (5.9lb) |
| Dimension: | Ø276.07 x 276.6 mm (10.87 x 10.89 in) |
| Mounting method: | Wall/pole mounted |
| Key: | Press and hold for 3 seconds to announce IP address;
Press and hold for 10 seconds to reset device to factory defaults. |
| Environmental | |
| Installation environment: | Outdoor |
| Operating temperature: | -40℃ – 70℃ (-40℉ – 158℉) |
| Storage temperature: | -40℃ – 70℃ (-40℉ – 158℉) |
| Humidity: | 10% – 95% RH Non-condensing |
| Approvals: | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A |
