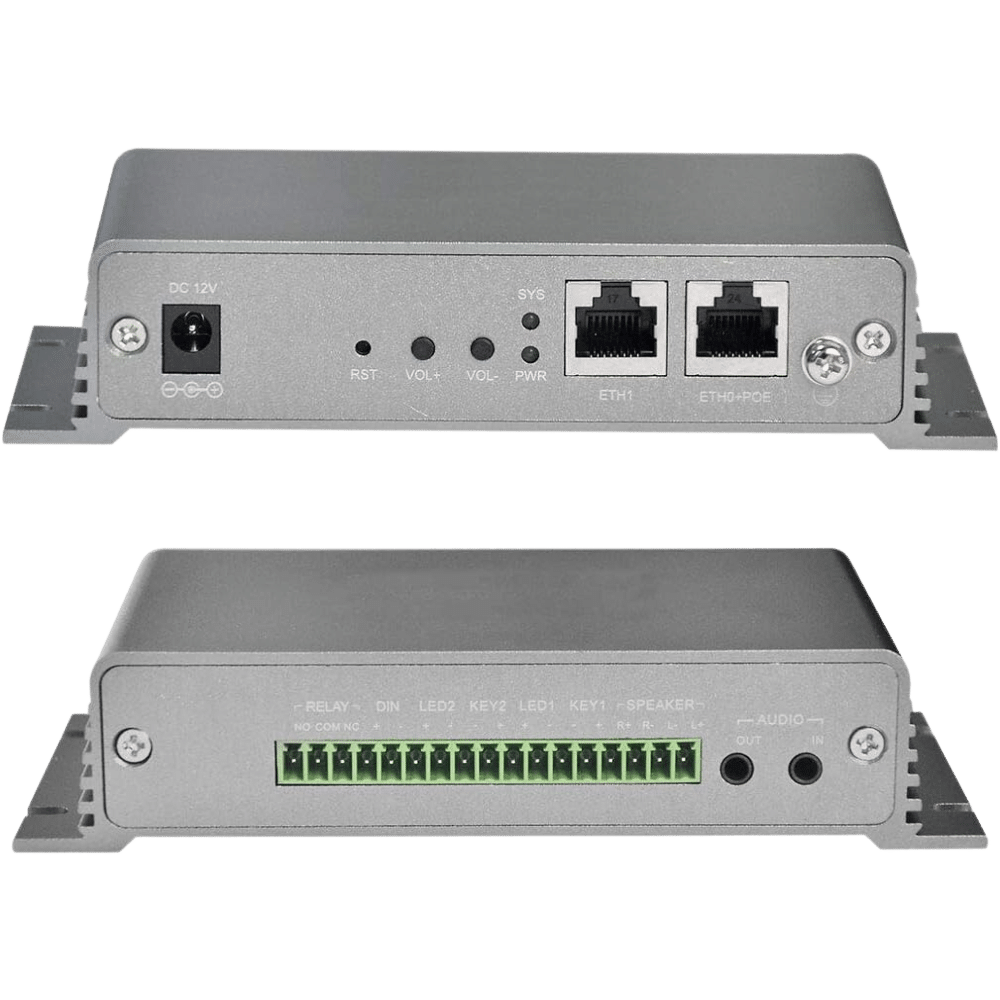

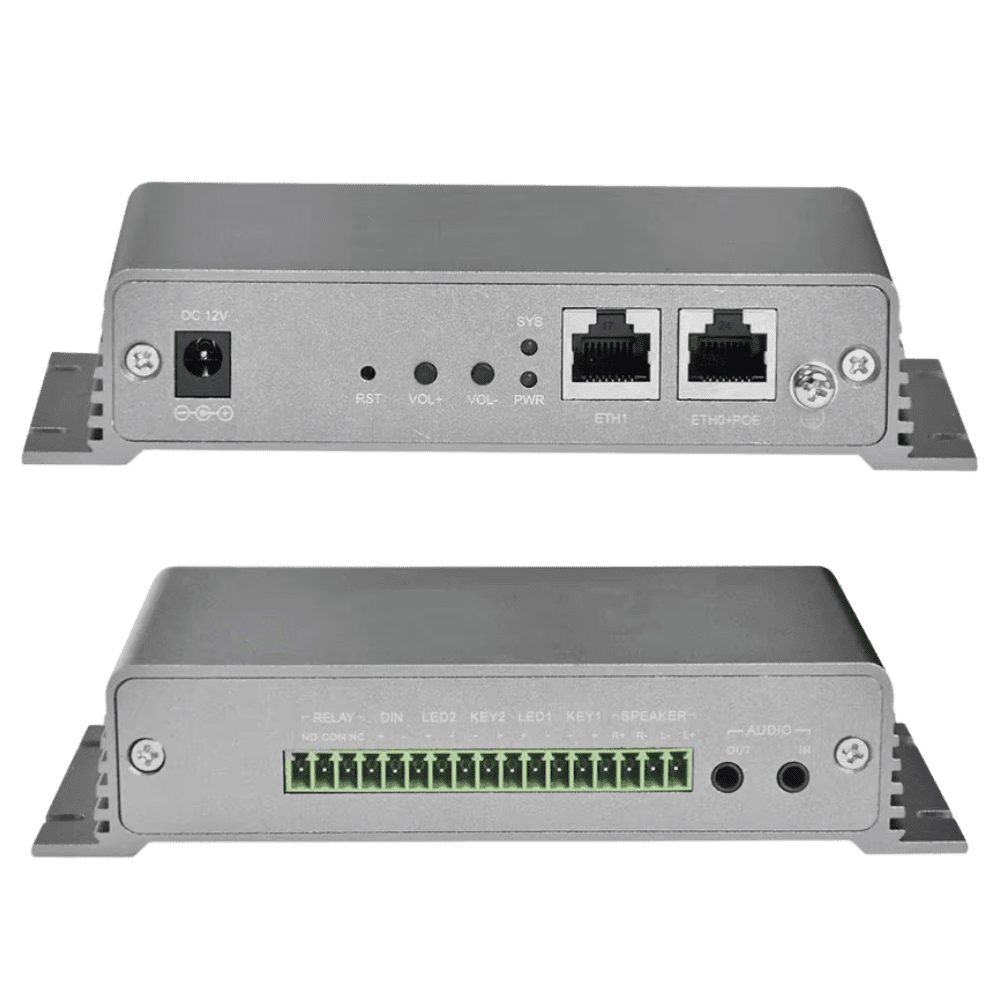

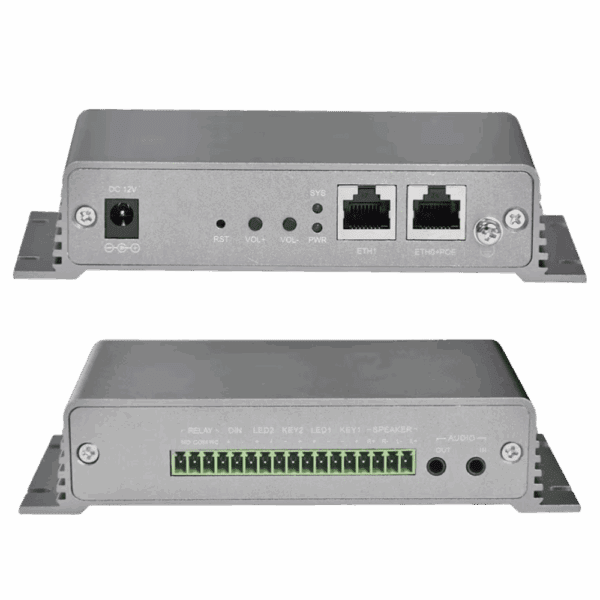

ZYCOO X10 SIP Paging Gateway

ZYCOO X10 SIP Paging Gateway Built-in Amplifier
Built-in amplifier rated at 2x10W dual-channel output, passive loudspeakers can be connected directly for stereo audio output, no external amplifier is needed.
Stereo Audio
Music can be streamed from ZYCOO IP Audio Center using streamed media to the X10 SIP paging gateway for local decoding and playback, high definition stereo audio quality is guaranteed.
Two-way Intercom
Support 2 programmable “press-to-talk” switch buttons, with an external speaker and microphone, it can do two-way intercom calls for emergency or consulting purposes.
HD Audio Codecs
Support G.722 wideband audio codec, provides clear and intelligible voice speech for the intercom calls. With the high audio reproduction ability and clarity, quality of communication is guaranteed.
Compatible with Third-party SIP Server
With SIP protocol support, the X10 SIP paging gateways can be easily integrated with
existing third-party SIP servers. SIP paging or intercom calling using your existing phone system.
Door Magnet Control
The X10 SIP paging gateways is equipped with built-in relay switch, which can be used for door magnet control or other devices to be controlled with dry contact signal. The invoke of dry contact signal can be digital input signal from sensors, DTMF signal or call status.
Automatic Control
The X10 SIP paging gateway supports processing the external sensor or other devices’ digital input signal, to invoke dry contact signal output for door magnet control, automated emergency calling, automated emergency alarm, etc.
Auto Provisioning
ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be effort and time-saving.
Power over Ethernet (PoE)
Standard PoE (IEEE802.3at) support, sample and easy installation with a single network cable. Large-scale installation will be extremely easy and timesaving.
ZYCOO X10 SIP Paging Gateway External Audio Collection
With the 3.5mm audio input jack, it can collect external audio sources from devices such as mobile phones, computers, mp3, etc. and playback through the corresponding devices.
Various Peripherals Support
Various peripherals can be integrated, like IP camera, smoke sensors, infrared sensors, door magnet, sound and light alarm which can be used for public safety and security purposes.
No Server Relies
Support Multicast and Peer-to-peer (P2P) to share data between devices without a central server while the devices use under the same local network.Multi SIP Accounts
Support three lines SIP accounts, in which users may register the endpoint in more than one system for achieving different functionality purposes.
